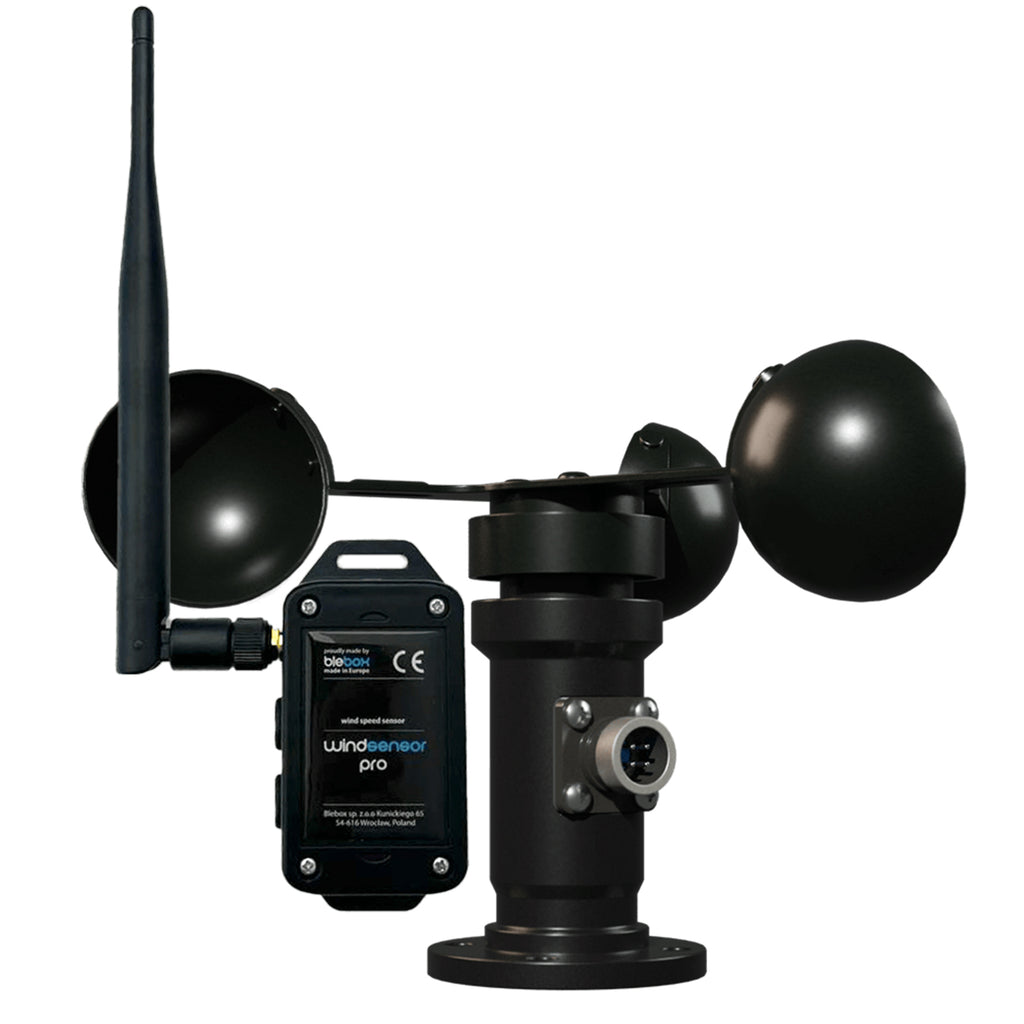

Blebox P-WSP-1.0 - windSensor PRO
Roll over image to zoom in Click on image to zoom
Blebox P-WSP-1.0 - windSensor PRO

Blebox P-WSP-1.0 - windSensor PRO

BleboxSKU: BB-P-WSP-1.0
Title: windSensor PRO
Price:
$175.00

Product Datasheets

Schematics - windSensor PRO Manual

Device Dimensions

QuickStart Instructions

Description

windSensor PRO

  • Measurement of instantaneous, maximum and average wind speed from 0.5m/s to 30m/s
  • Historical data and wind speed charts in the wBox app
  • Afraid of strong winds? Set a notification on your smartphone!
  • Awning, shutter? In strong winds, windSensor PRO will automatically open or close your awning, blind or roller shutter

Monitor your environment with the Blebox P-WSP-1.0 Blebox P-WSP-1.0 - windSensor PRO. This smart sensor delivers real-time data such as temperature, humidity, air quality, or movement—depending on the model—providing you with actionable insights and automation triggers.

Specification

Supply voltage:

12-24V DC
Inputs number:

1
Inputs type:

designed to connect a dedicated wind sensor
Signaling:

blinking blue diagnostic diode (option to switch off in the controller settings)
Dimensions:

Module: 50 x 92 x 28 mm (without antenna), 85 x 230 x 28 mm (with the antenna located vertically), antenna length 197 mm

Sensor: Φ194 x 124mm (outer diameter, overall height)
Housing:

plastic, covered with a polyurethane composition not containing halogens, self-extinguishing for thermal class B (130°C)
Protection Rating:

IP54
Mounting method:

Module: two oval mounting holes with dimensions of 18 mm (width) x 3.5 mm (height) or self-adhesive element (tape)

Sensor: 4 M5/M6 screws, holes described on a circle Φ50"
Operating temperature of the controller:

from -20°C to 50°C
Protection:

inverted polarization, ESD
Wyjście antenowe:

yes
Antenna connector type:

RP-SMA
Antenna:

omnidirectional, 5dB gain - included in the kit
Communication standard:

μWiFi, compatible with WiFi, 802.11g
Transmission type:

bi-directional, encrypted
Encryption:

WPA2-PSK and authenticated encryption with associated data (AEAD)
Mode:

direct connection (as Access Point), Wi-Fi connection via a stan- dard router, connection with access from any location in the world (requires only access to the Internet)
Radio frequency:

2.4 GHz
API:

open
Compatible devices and systems:

Apple iPhone, Apple iPad, iPad Mini, Android, computers and mobile devices supporting HTML5

Payment & Security

American Express Apple Pay Discover Google Pay Mastercard PayPal Shop Pay Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Wind speed measurement

The WiFi windSensor PRO allows you to measure wind speed from 0.5 to 30 m/s (1.8 – 108 km/h):

-instantaneous wind speed (current)
-maximum wind speed (in gusts)
-average wind speed (last 10 minutes)

The wBox application allows you to set the unit in m/s, km/h and in knots.

Charts and historical data

In the wBox application, it is possible to view historical measurement values:

-average wind speed
-maximum wind speed (in gusts)

It also works as a measuring station before setting up a wind farm – it will make it possible to check whether there are winds above 5m/s (and for how many days a year) for the wind farm to be viable.

For advanced users, there is an option to export data to a file.

Notifications, warnings

The WiFi wind sensor allows you to set notifications / warnings to your smartphone that will be sent in the event of e.g. strong winds:

-If the average wind speed is greater than 40km/h, send a notification
-If there is a wind (gust) stronger than 70 km/h, send a notification
