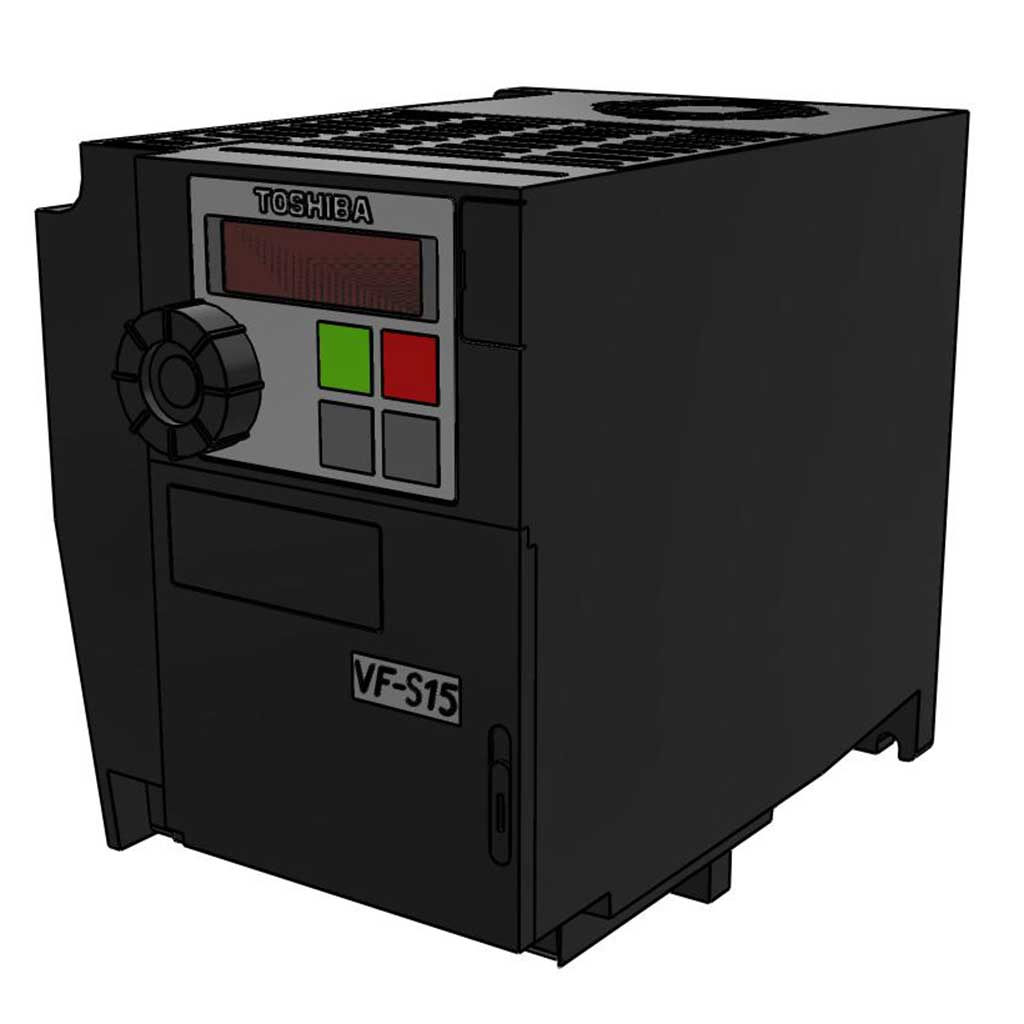

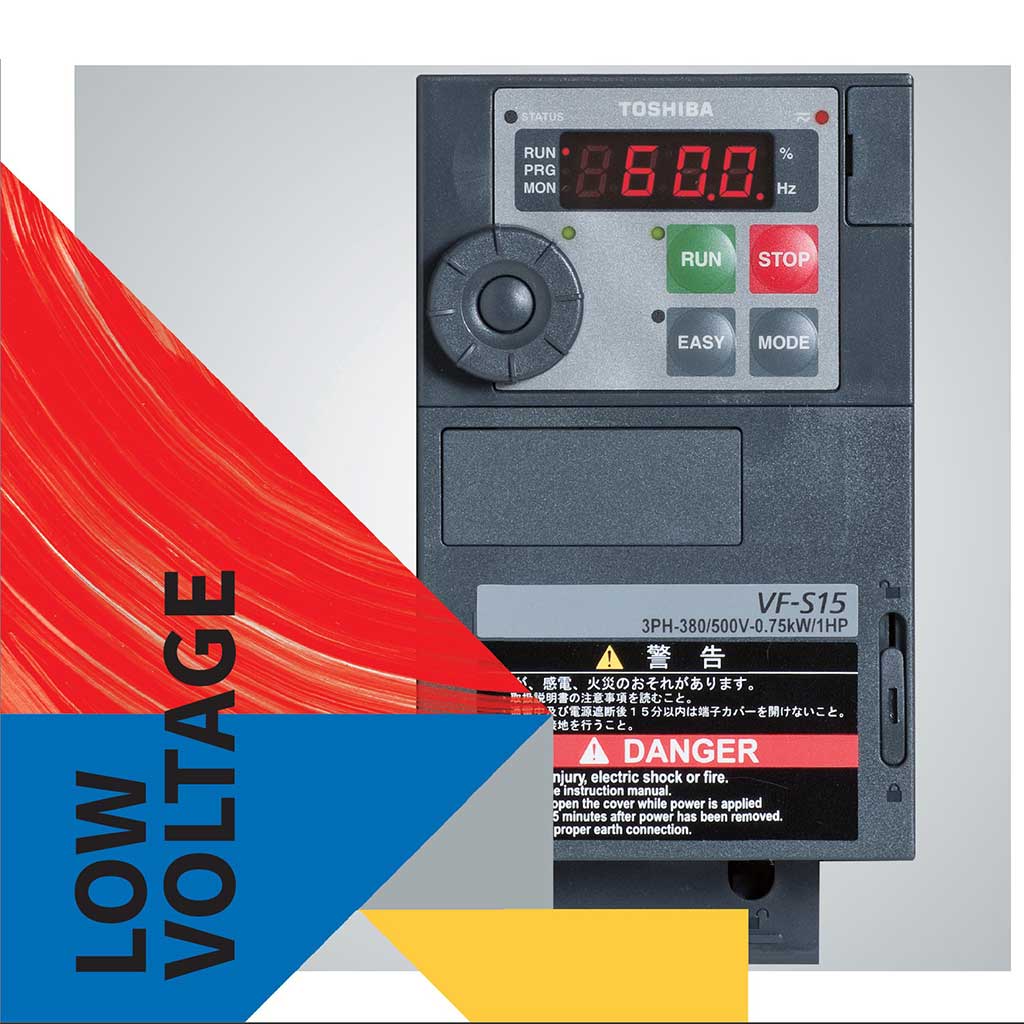

The Toshiba VFS15-4007PL1-W1 S15 Microdrive is a compact, heavy-duty variable frequency drive designed for precise motor speed and torque control in a wide range of industrial applications. Rated for 1 HP operation in the 460/480V three-phase class, this S15 drive provides a heavy-duty full-load current rating of 2.3 A.
Toshiba's S15 Series combines a space-saving design with advanced motor-control capabilities for both variable-torque and constant-torque applications. The drive supports vector control, PID process control, permanent magnet (PM) motor operation, and RS485 communications, making it suitable for applications such as pumps, fans, conveyors, mixers, machine tools, compressors, and other industrial equipment.
Key Features
- 1 HP heavy-duty motor rating
- 460/480V class, three-phase operation
- 2.3 A heavy-duty full-load current
- Compact Toshiba S15 Microdrive design
- Output frequency range from 0.1 to 500 Hz
- Vector control and automatic torque boost
- PID process control
- Permanent magnet (PM) motor control capability
- RS485 communications with TSB or Modbus RTU protocol

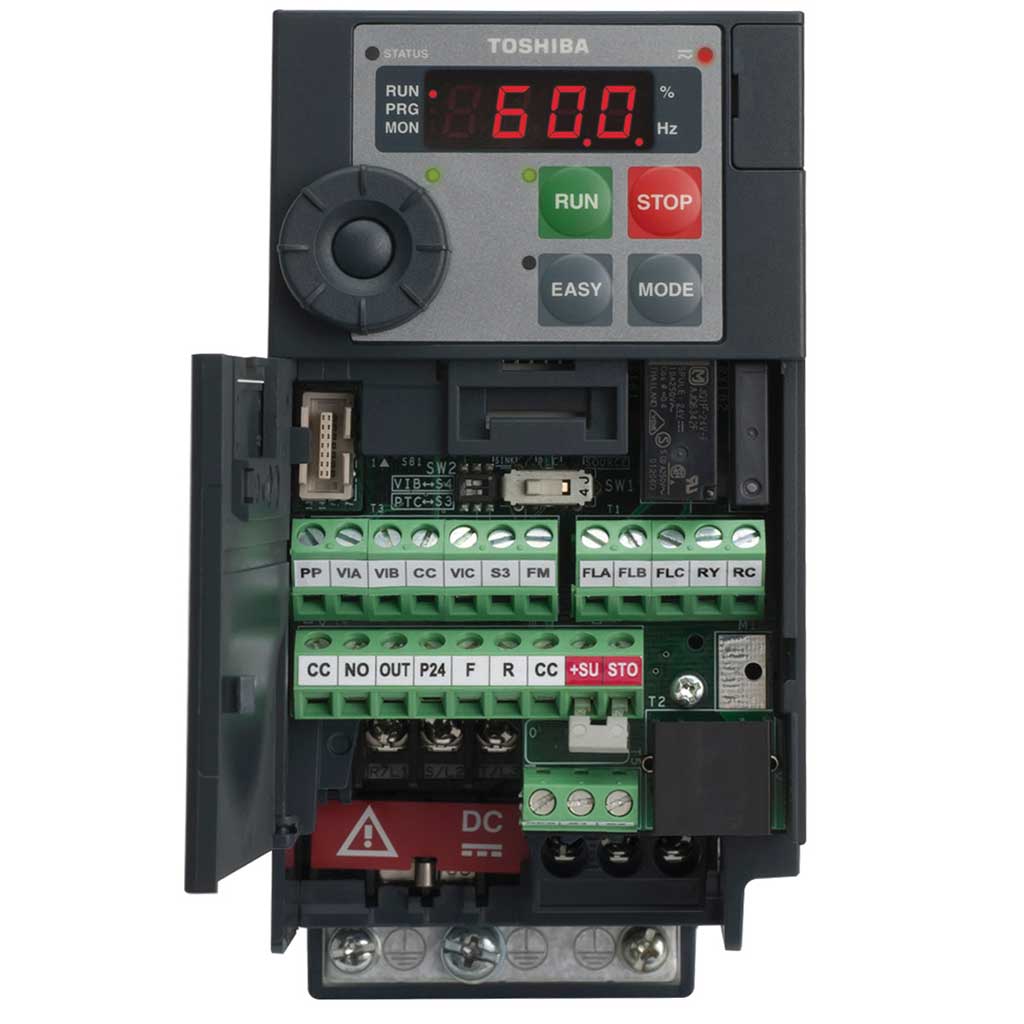

- Integrated LED keypad and rotary encoder
- 110% continuous overload rating and 150% for one minute
- IP20 wall-mount enclosure
Specifications
| Manufacturer |
Toshiba |
| Model |
VFS15-4007PL1-W1 |
| Series |
S15 Microdrive |
| Drive Type |
Variable Frequency Drive (VFD) |
| Motor Rating |
1 HP |
| Voltage Class |
460/480V |
| Input Phase |
3-Phase |
| Heavy-Duty Full-Load Current |
2.3 A |
| Output Frequency |
0.1–500 Hz |
| Enclosure |
IP20 |
| Frame |
2C4 |
| Dimensions (W × H × D) |
105 × 130 × 150 mm |
| Mounting Dimensions |
93 × 121.5 mm |
| Approximate Unit Weight |
1.2 kg (2.65 lb) |
| Communication |
RS485 (TSB or Modbus RTU) |
Please note: Availability and lead times are subject to change. Contact P&P Distributors to confirm compatibility and current delivery before ordering.
