The Toshiba VFAS3-4004PC AS3 General Purpose Variable Frequency Drive is a high-performance adjustable speed drive designed for precise motor control in demanding industrial applications. This 460V three-phase drive is rated for 0.5 HP Heavy Duty (HD) operation or 1 HP Normal Duty (ND) operation, providing flexibility for both constant-torque and variable-torque applications.
Toshiba's AS3 Series combines advanced motor control, built-in communications, and an intuitive interface for applications such as pumps, fans, blowers, conveyors, compressors, mixers, and other industrial machinery.
Key Features
- 0.5 HP Heavy Duty / 1 HP Normal Duty rating
- 460V class, three-phase operation
- 1.5A Heavy Duty / 2.2A Normal Duty full-load current
- 150% current overload for 60 seconds in Heavy Duty operation
- 120% current overload for 60 seconds in Normal Duty operation
- Advanced motor control for industrial applications

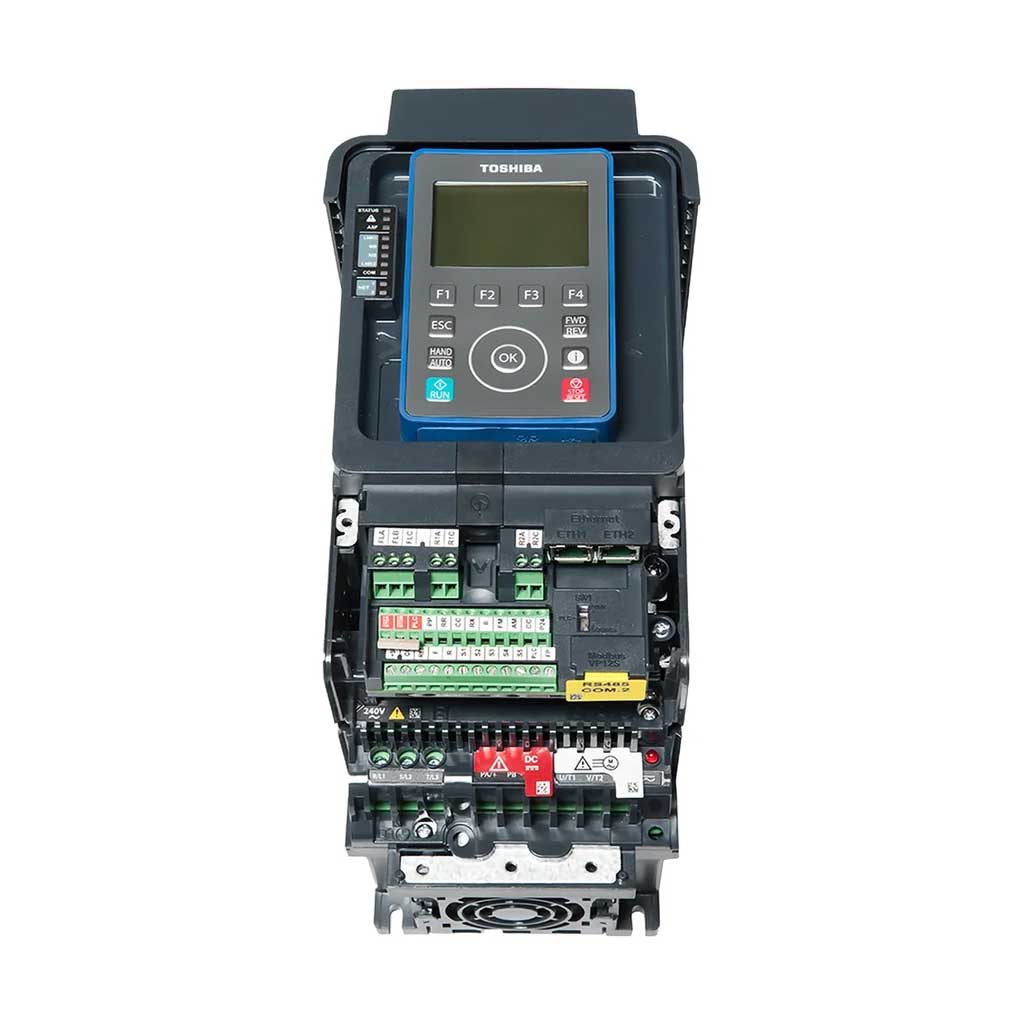

- Built-in EtherNet/IP and Modbus TCP communications
- Embedded web server for configuration and monitoring
- Dual PID control capability
- Permanent magnet (PM) motor control capability
- LCD operator interface for setup, monitoring, and diagnostics
Specifications
| Manufacturer |
Toshiba |
| Series |
AS3 General Purpose |
| Model |
VFAS3-4004PC |
| Voltage Class |
460V |
| Heavy Duty Rating |
0.5 HP / 1.5A |
| Normal Duty Rating |
1 HP / 2.2A |
| Enclosure |
UL Type 1 |
| Frame |
A1 |
| Dimensions (H × W × D) |
13.8 × 5.7 × 8.0 in. |
| Shipping Weight |
9.9 lb |
Applications: Pumps, fans, blowers, conveyors, compressors, mixers, and general industrial motor control.
