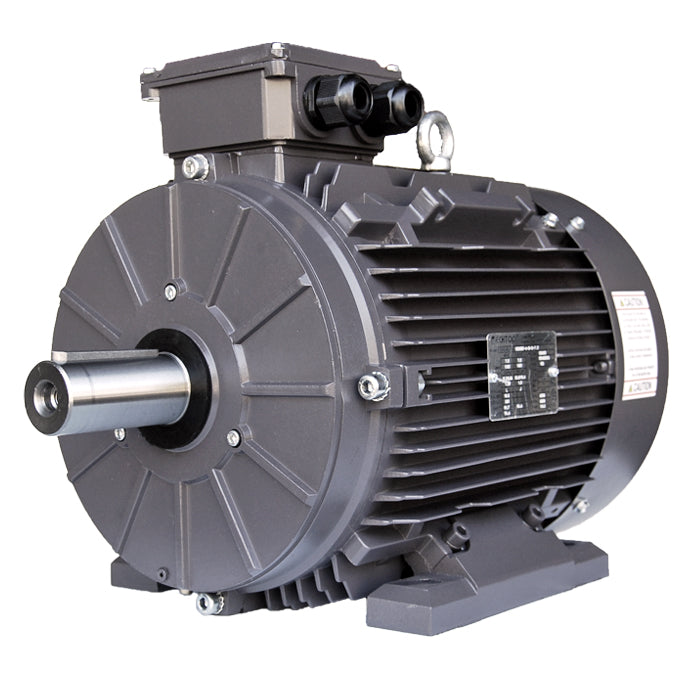

TechTop TEFC Metric GR3-CI-TF-280MB3-4-BR-D-150 Electric Motor

TechTopSKU: GR3-CI-TF-280MB3-4-BR-D-150

Motor Mounting Type: B3
Frame Size: 280
KW: 110.0
Price:
Sale price$20,391.00
Stock:
In stock

Description

TechTop TEFC Metric Motors

GR3-CI-TF-280MB3-4-BR-D-150

GR3-CI-TF-280MB35-4-BR-D-150

KW: 110.00

HP: 150.00

Sync RPM: 1800

Eff Level: IE3

  • IP 55 Rated Ingress Protection
  • Inverter Rated - 15:1 Constant Torque (MG1 Part 31)
  • Double Lip Bearing Seal on DE & ODE
  • VPI Lap Wound Stator with Tropicalization
  • Dual Oversized Bearing on DE & ODE
  • Multi mount Removable Feet
  • Corrosion Resistant Hardware
  • Rubber Slinger Protection on Drive End
  • Conduit Box is 90° Rotatable
  • Zerk Regreasable Bearings 160 Frame and Larger
  • F1, F2, F3 Field Convertible
  • Class H Insulated Stator with Class F Leads
  • Terminal Blocks between Conduit Box & Body
  • Increase & Decrease Flanges Available
  • One-Way Brass Condensation Drain on DE & ODE
  • Class 1, Division 2, Groups A, B, C & D Compliant
  • 36 Month Warranty
