TechTop TEFC Metric GR3-AL-TF-132SB3-2-B-D-7.5 Electric Motor

TechTopSKU: GR3-AL-TF-132SB3-2-B-D-7.5

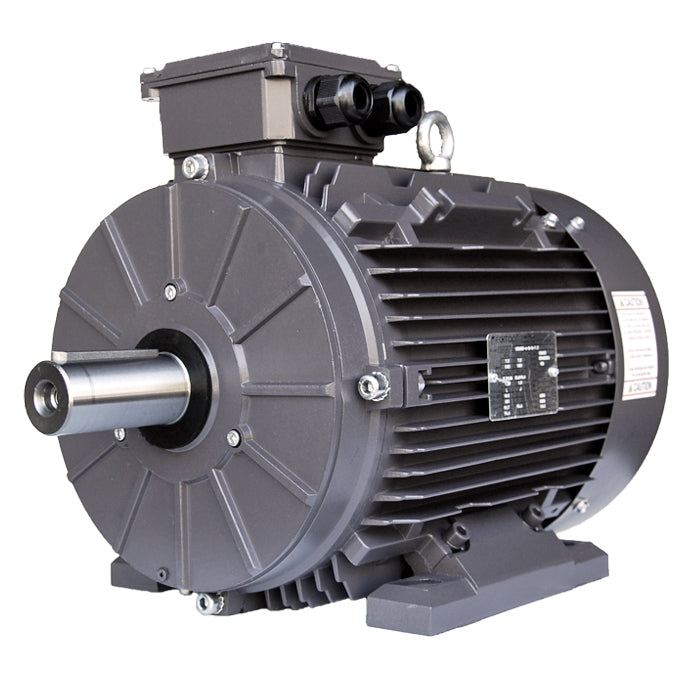

Motor Mounting Type: B3
Frame Size: 132
HP: 7.5
Price:
Sale price$1,271.00
Stock:
In stock

Description

TechTop TEFC Metric Motors

GR3-AL-TF-132SB3-2-B-D-7.5

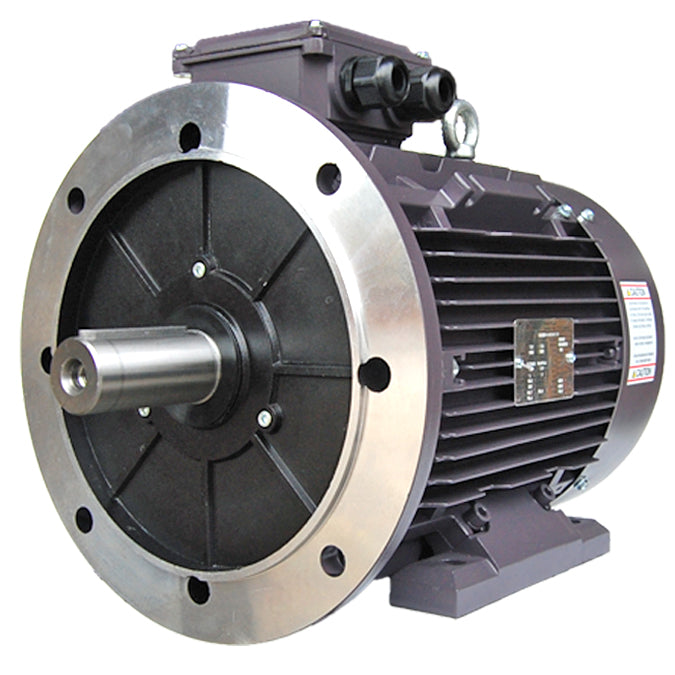

GR3-AL-TF-132SB35-2-B-D-7.5

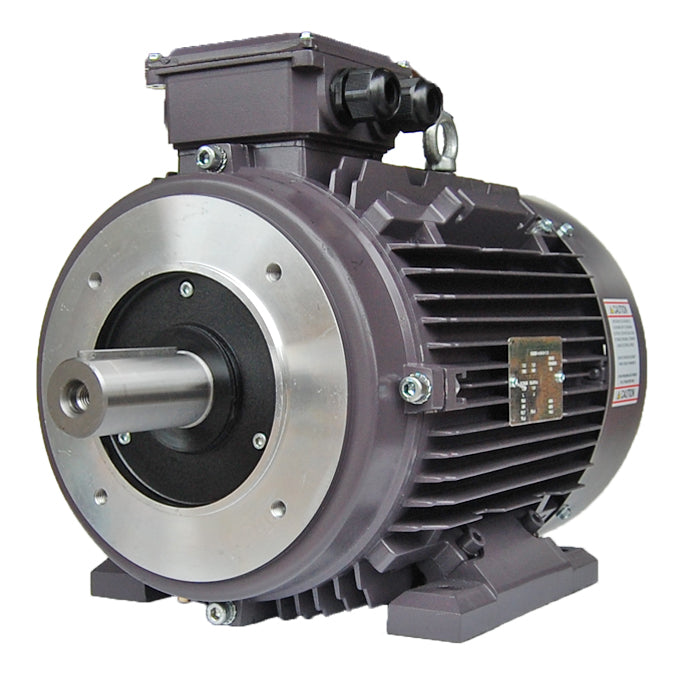

GR3-AL-TF-132SB34-2-B-D-7.5

KW: 5.5

HP: 7.5

Sync RPM: 3600

Eff Level: IE3

  • IP 55 Rated Ingress Protection
  • Inverter Rated - 15:1 Constant Torque (MG1 Part 31)
  • Double Lip Bearing Seal on DE & ODE
  • VPI Lap Wound Stator with Tropicalization
  • Dual Oversized Bearing on DE & ODE
  • Multi mount Removable Feet
  • Corrosion Resistant Hardware
  • Rubber Slinger Protection on Drive End
  • Conduit Box is 90° Rotatable
  • Zerk Regreasable Bearings 160 Frame and Larger
  • F1, F2, F3 Field Convertible
  • Class H Insulated Stator with Class F Leads
  • Terminal Blocks between Conduit Box & Body
  • Increase & Decrease Flanges Available
  • One-Way Brass Condensation Drain on DE & ODE
  • Class 1, Division 2, Groups A, B, C & D Compliant
  • 36 Month Warranty
