TechTop TEFC Metric GR3-AL-TF-132MB3-4-B-D-10 Electric Motor

TechTop TEFC Metric Motors

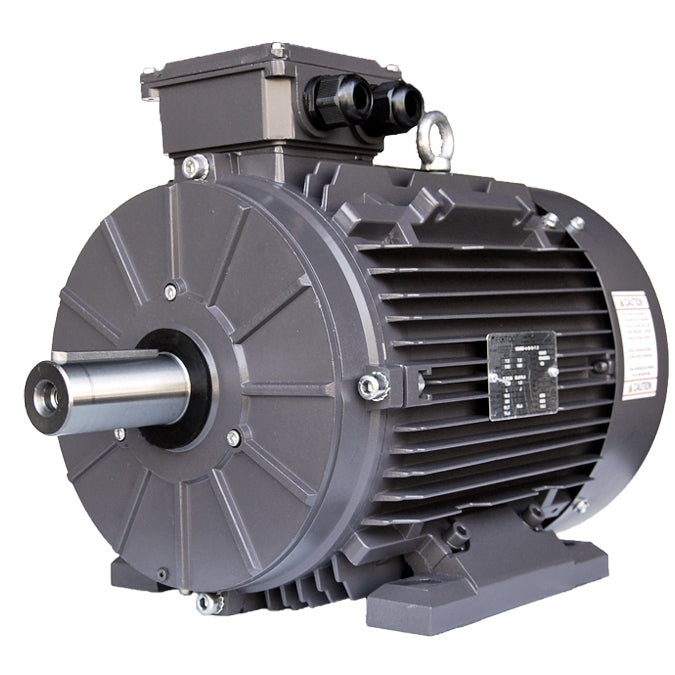

GR3-AL-TF-132MB3-4-B-D-10

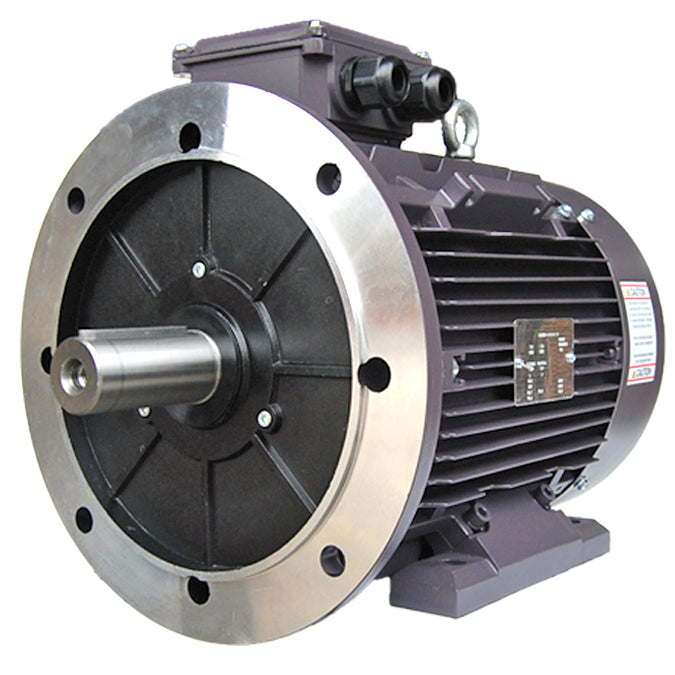

GR3-AL-TF-132MB35-4-B-D-10

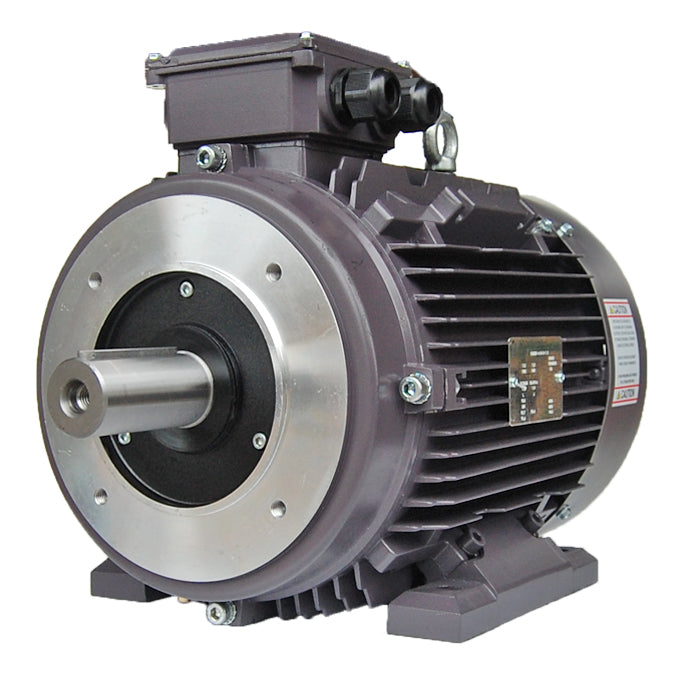

GR3-AL-TF-132MB34-4-B-D-10

KW: 7.5

HP: 10.0

Sync RPM: 1800

Eff Level: IE3

• IP 55 Rated Ingress Protection

• Inverter Rated - 15:1 Constant Torque (MG1 Part 31)

• Double Lip Bearing Seal on DE & ODE

• VPI Lap Wound Stator with Tropicalization
• Dual Oversized Bearing on DE & ODE
• Multi mount Removable Feet
• Corrosion Resistant Hardware

• Rubber Slinger Protection on Drive End

• Conduit Box is 90° Rotatable
• Zerk Regreasable Bearings 160 Frame and Larger
• F1, F2, F3 Field Convertible
• Class H Insulated Stator with Class F Leads
• Terminal Blocks between Conduit Box & Body
• Increase & Decrease Flanges Available
• One-Way Brass Condensation Drain on DE & ODE
• Class 1, Division 2, Groups A, B, C & D Compliant
• 36 Month Warranty
