QTS Series Pump 200

Q-PumpsSKU: QTS-200-SN
No reviews

Seal: Single Seal C/SiC
Price:
Sale price$16,027.00
Stock:
Only 1 unit left

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Description

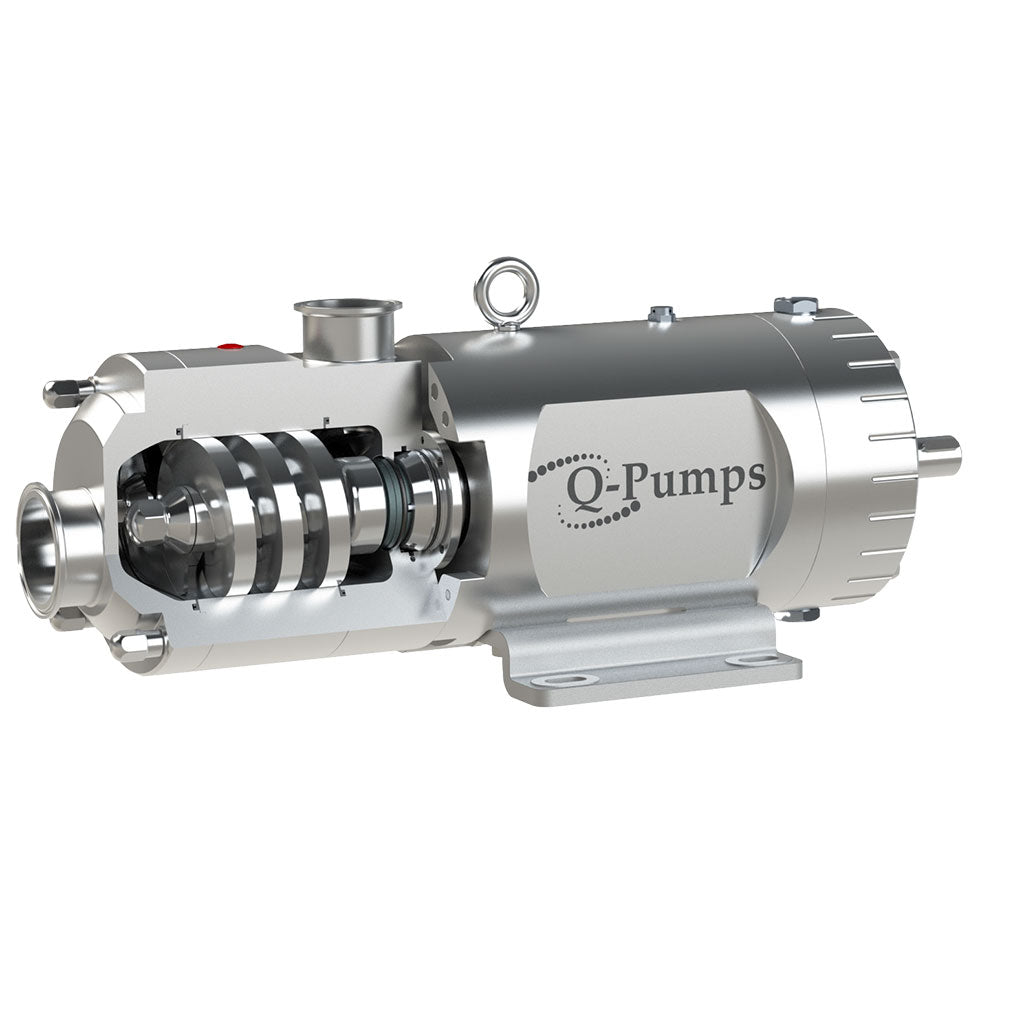

The QTS is a twin screw pump, 100% sanitary use and ideal as a CIP and Process pump, which reduces time and maintenance costs. Also available with rectangular inlet. Ideal for products with high content of air and gas. Certifications: 3-A, FDA and EHEDG

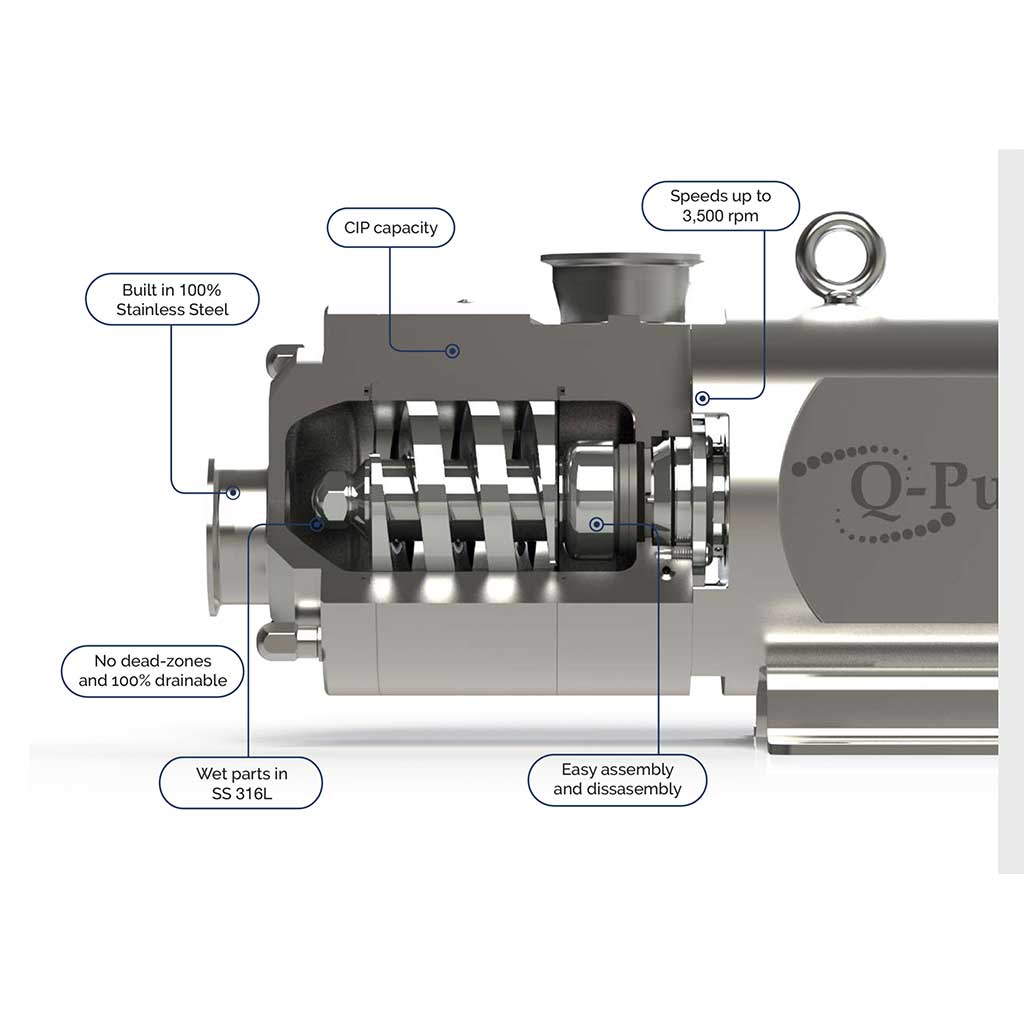

CHARACTERISTICS

  • Gentle product pumping
  • Superior handling of suspended solids
  • Constant flow, free of pulsations
  • Process and CIP with the same equipment
  • Bidirectional
  • Ideal for abrasive products
  • Built in 100% Stainless Steel
  • Speeds up to 3500 rpm
  • No dead-zones and 100% drainable
  • Wet parts in SS 316L
  • Easy assembly
  • 32 μin (0.8 μm) Ra maximum
  • surface finish

      ADVANTAGES

      • Pulsation-free
      • 100% high-speed CIP
      • Constant flow
      • Easy assembly and disassembly
      • Ideal for abrasive products
      • No contact between casing and rotor working at high pressures
      • Great suction capacity that eliminates low NPSH problems
      • Gentle handling of cut-sensitive products.
      • 100% drainable
      • Bidirectional: It is possible to recover the product from the line due to being reversible

      APPLICATIONS

      applications QTS series

      REFERENCE DATA


      Process Flow: 93 gpm, 185 lpm

      CIP Flow: 352 gpm, 700 lpm

      Port Sizes: 2", 2.5", 3" in - 50,65,80 DN mm

      Max Diff Pressure: 360 psi/25bar

      Viscosity: 1 000 000 cP

      Temperature: 248F (120C)



      DOWNLOADS

      QTS Brochure

      QTS Dimensions

      QTS Maintenance Manual

      QTS Series Flyer
