QTS -100 Twin Screw Pump

Q-PumpsSKU: QTS-100-SN

Seal: Single Seal C/SiC
Price:
Sale price$9,312.77
Stock:
In stock

Description

The QTS is a twin screw pump, 100% sanitary use and ideal as a CIP and Process pump, which reduces time and maintenance costs. Also available with rectangular inlet. Ideal for products with high content of air and gas. Certifications: 3-A, FDA and EHEDG

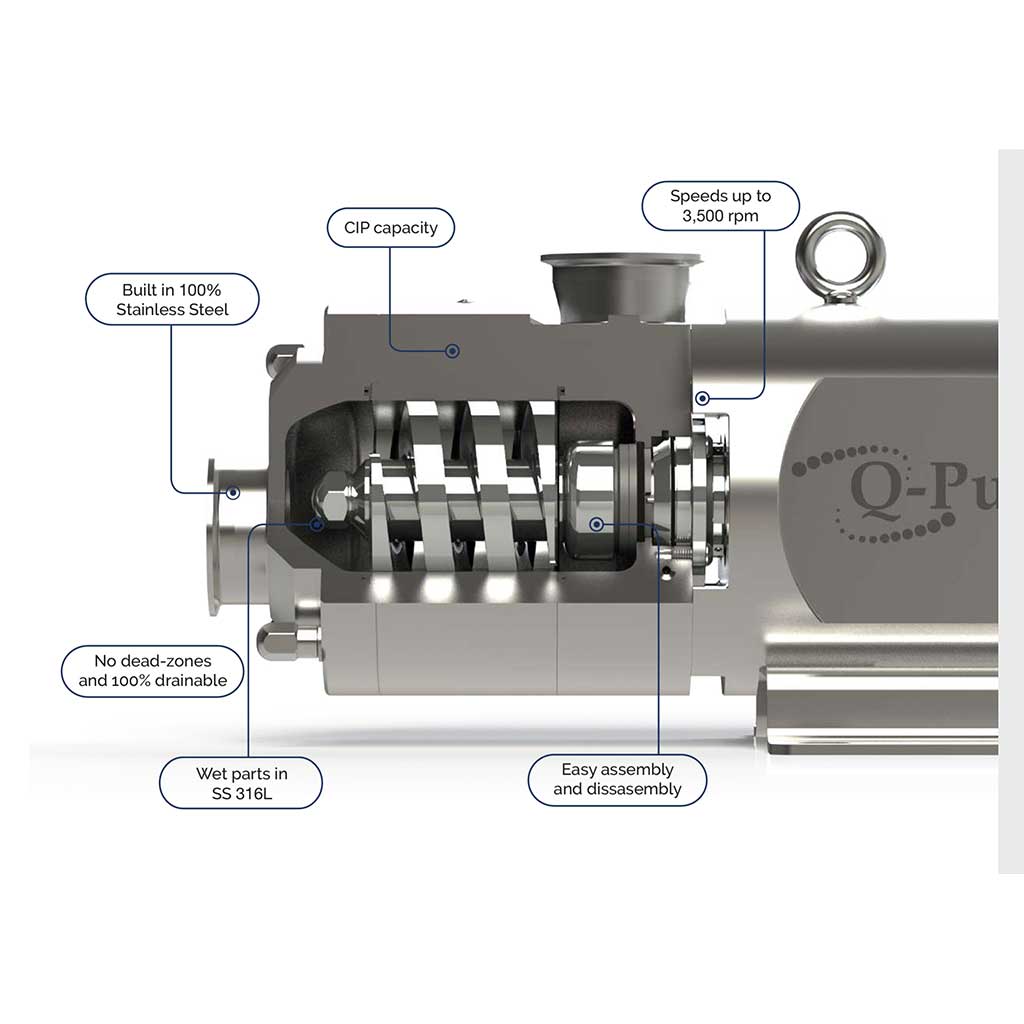

CHARACTERISTICS

  • Gentle product pumping
  • Superior handling of suspended solids
  • Constant flow, free of pulsations
  • Process and CIP with the same equipment
  • Bidirectional
  • Ideal for abrasive products
  • Built in 100% Stainless Steel
  • Speeds up to 3500 rpm
  • No dead-zones and 100% drainable
  • Wet parts in SS 316L
  • Easy assembly
  • 32 μin (0.8 μm) Ra maximum
  • surface finish

      ADVANTAGES

      • Pulsation-free
      • 100% high-speed CIP
      • Constant flow
      • Easy assembly and disassembly
      • Ideal for abrasive products
      • No contact between casing and rotor working at high pressures
      • Great suction capacity that eliminates low NPSH problems
      • Gentle handling of cut-sensitive products.
      • 100% drainable
      • Bidirectional: It is possible to recover the product from the line due to being reversible

      APPLICATIONS

      applications QTS series

      REFERENCE DATA


      Process Flow: 35 gpm, 132 lpm

      CIP Flow: 70 gpm, 265 lpm

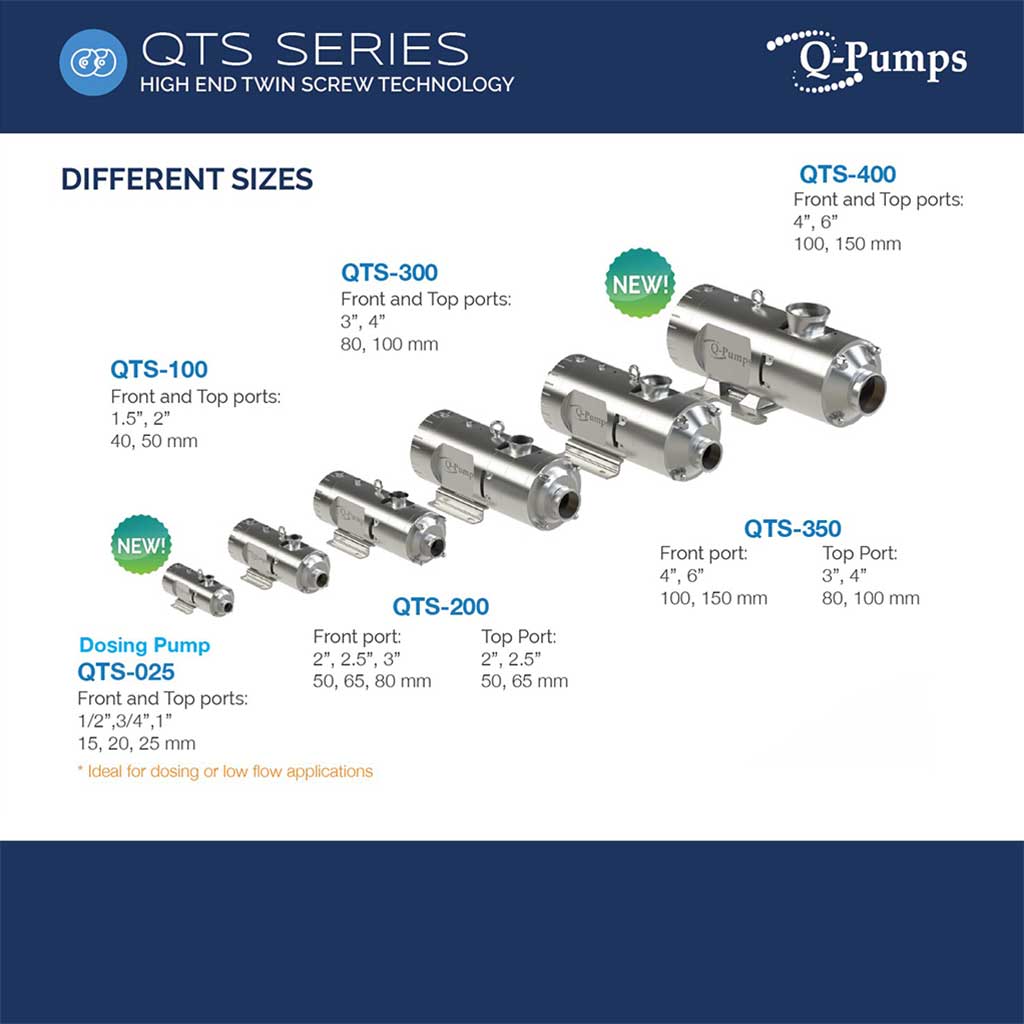

      Port Sizes: 1.5"/2" in, 40/50 DN mm

      Max Diff Pressure: 260 psi/18bar

      Viscosity: 1 000 000 cP

      Temperature: 248F (120C)



      DOWNLOADS

      QTS Brochure

      QTS Dimensions

      QTS Maintenance Manual

      QTS Series Flyer
