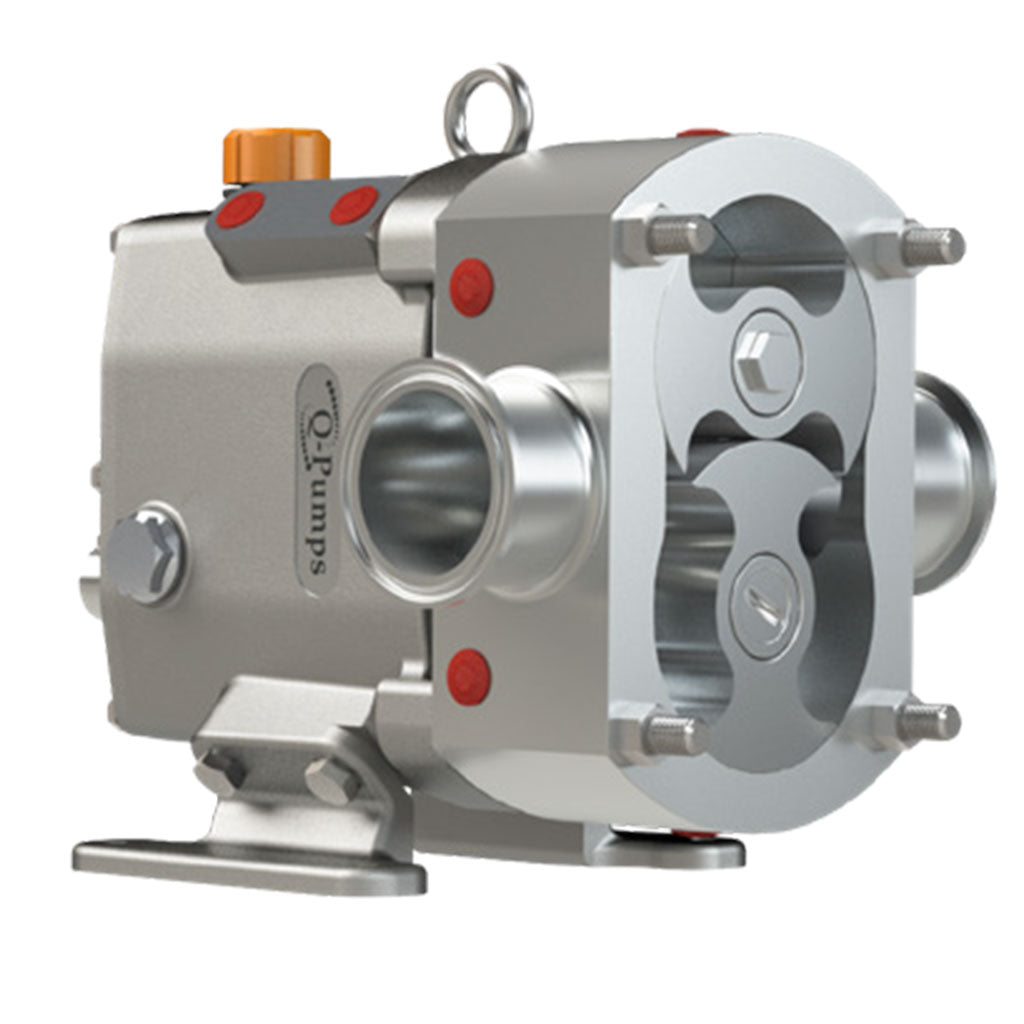

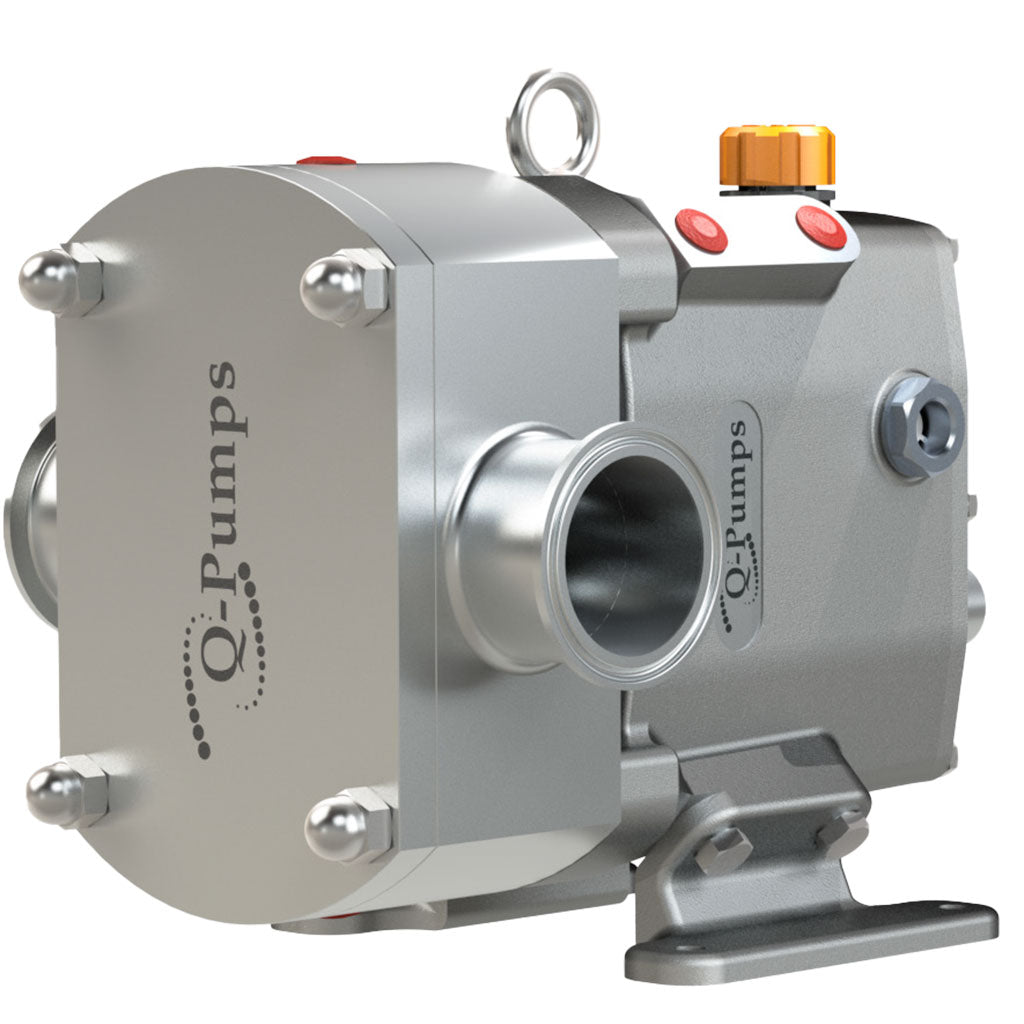

QL-C30 Rotary Pump

Q-PumpsSKU: QL-C30-ST

Seal Type: Single Mechanical Seal TC/TC
Price:
Sale price$11,198.85
Stock:
In stock

Description

The QL-C30 rotary pump feature positive displacement and due to their great versatility, can be adjusted to different applications. Certifications: 3A and EHEDG

CHARACTERISTICS

  • 3-A Certified and designed to comply with EHEDG standards
  • Front access seal that provides quick cleaning and less downtime
  • Standard Bi-Wing rotors for better performance
  • Multiple rotor options available
  • Stainless steel 316L cover and body
  • 32 μin (.8 μm) Ra maximum surface finish
  • Different types of seals for each application
  • Tri-Clamp connections as standard. Other connections available
  • Stainless steal gear box
  • Hexagonal or flat bolt options

ADVANTAGES

  • Low cost with excellent performance
  • Front access that allows quick cleaning
  • Different rotor types to best suit a wide range of product types
  • CIP capable

APPLICATIONS Pump applications

REFERENCE DATA


Displacement: 1.020 liters/per rev, 612.0 lpm, 161.7 gpm

Standard Connection Size: 80 DN/mm, 3.0 in

Maximum Differential Pressure: 12.1 bar, 175 psi

Maximum Speed: 600 rpm

DOWNLOADS

Curves QL

Brochure QL

Maintenance Manual QL

Reference Dimensions QL Series
