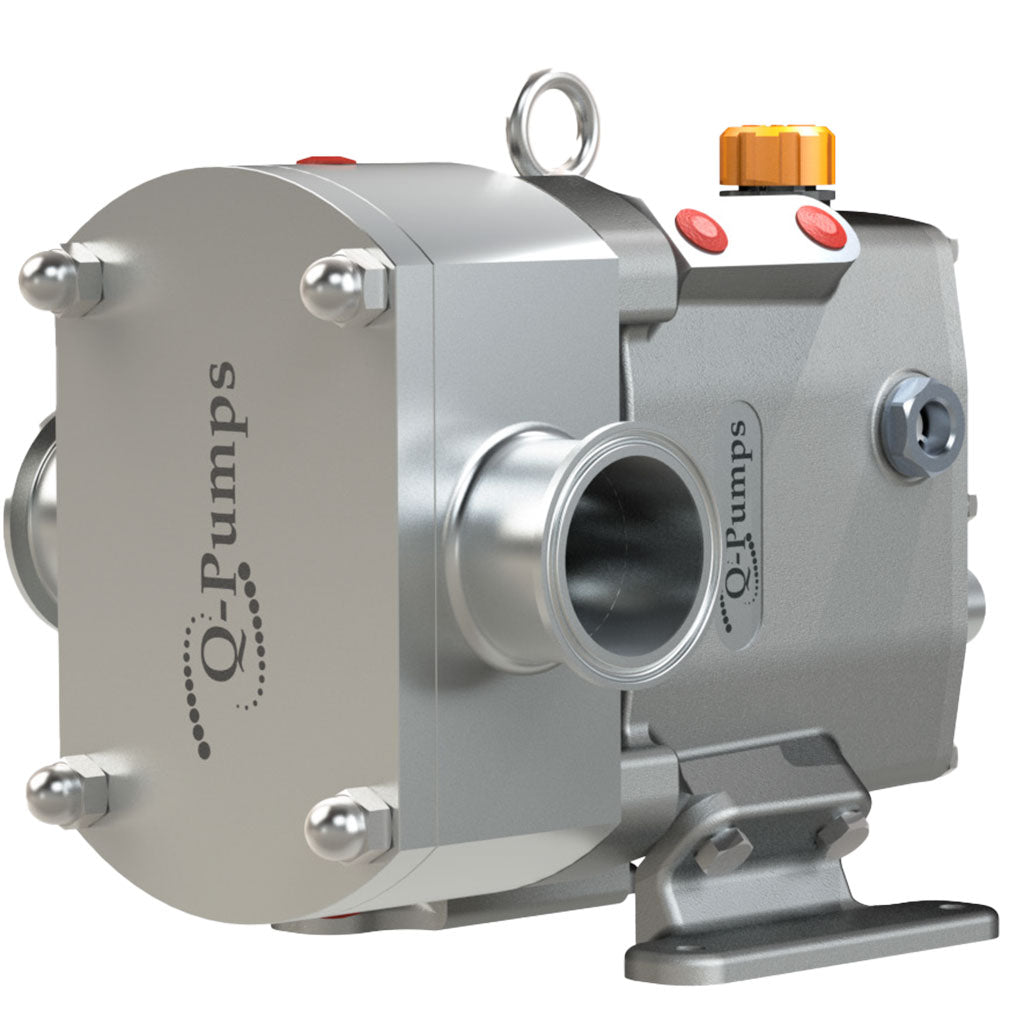

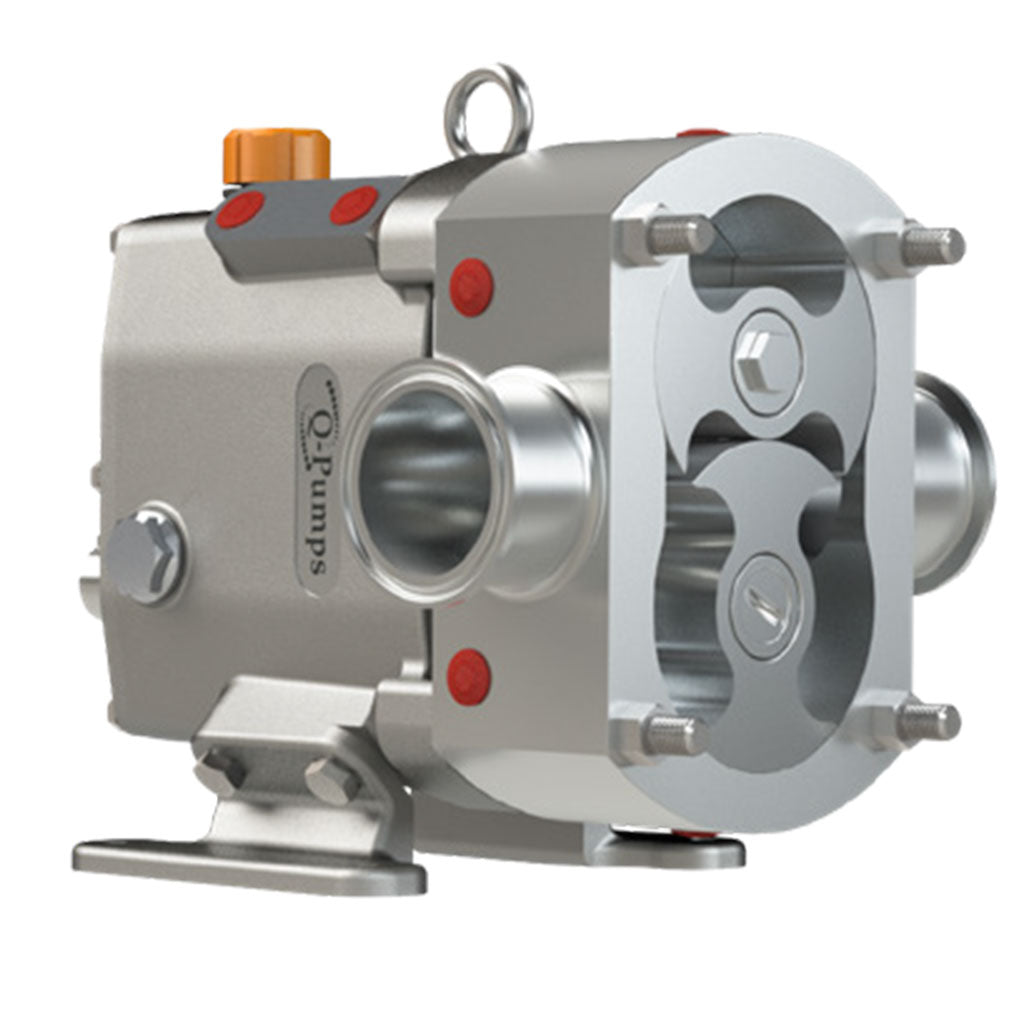

QL Series Pump B20

Q-PumpsSKU: QL-B20-ST
No reviews

Seal Type: Single Mechanical Seal TC/TC
Price:
Sale price$6,864.85
Stock:
Only 1 unit left

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Description

The QL-B20 rotary pump feature positive displacement and due to their great versatility, can be adjusted to different applications. Certifications: 3A and EHEDG

CHARACTERISTICS

  • 3-A Certified and designed to comply with EHEDG standards
  • Front access seal that provides quick cleaning and less downtime
  • Standard Bi-Wing rotors for better performance
  • Multiple rotor options available
  • Stainless steel 316L cover and body
  • 32 μin (.8 μm) Ra maximum surface finish
  • Different types of seals for each application
  • Tri-Clamp connections as standard. Other connections available
  • Stainless steal gear box
  • Hexagonal or flat bolt options

ADVANTAGES

  • Low cost with excellent performance
  • Front access that allows quick cleaning
  • Different rotor types to best suit a wide range of product types
  • CIP capable

APPLICATIONS Pump applications

REFERENCE DATA


Displacement: 0.410 liters/per rev, 287.0 lpm, 75.8 gpm

Standard Connection Size: 50 DN/mm, 2.0 in

Maximum Differential Pressure: 12.1 bar, 175 psi

Maximum Speed: 700 rpm

DOWNLOADS

Curves QL

Brochure QL

Maintenance Manual QL

Reference Dimensions QL Series
