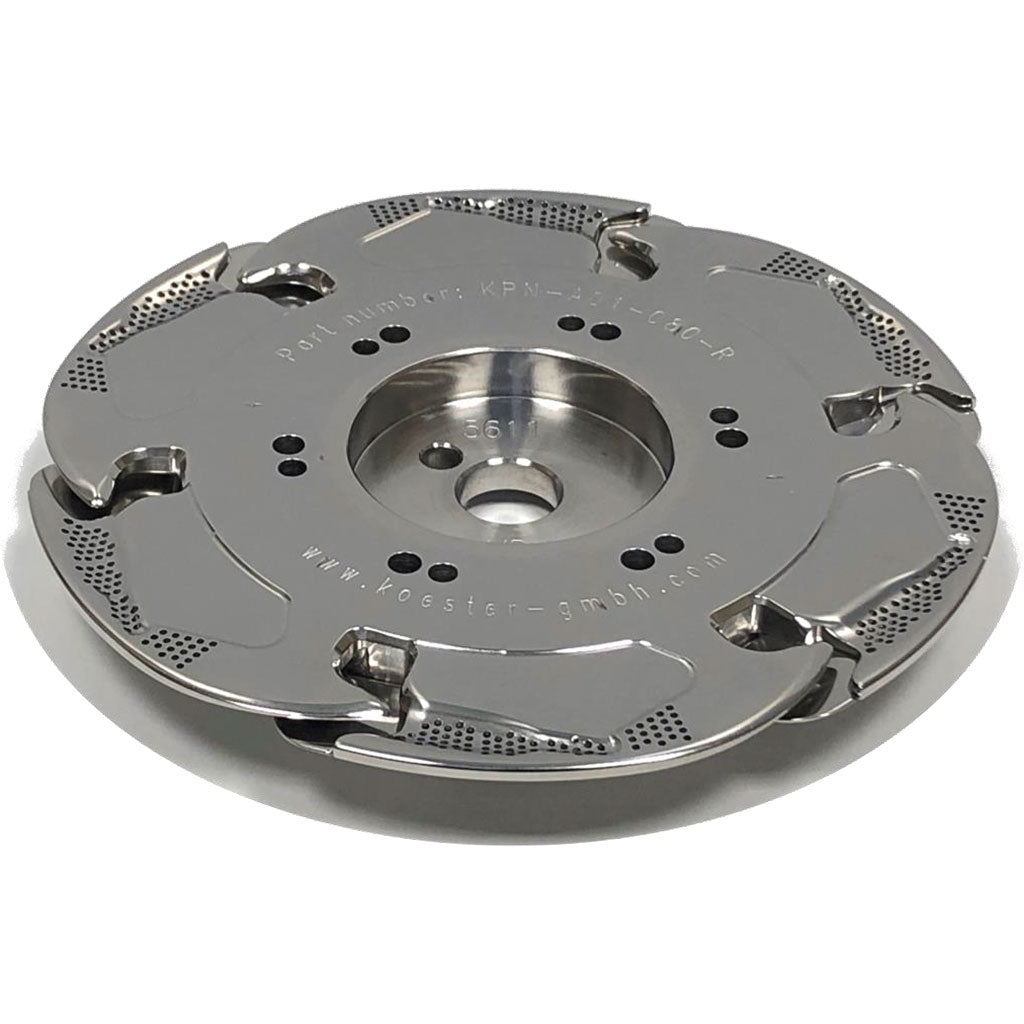

Name: Koster Disc Type S6
Brand: Koster
Availability: InStock

Roll over image to zoom in Click on image to zoom

Please specify any questions you have and we will contact you
OR
Call us at: (917) 681-9949

Koster S6 Counting Discs

Koster S6 Disc

Clockwise

KPN-A03-006-R
KPN-A15-030-RV-RS6
10.0101046.R158/8_S6

Counterclockwise

KPN-A03-006-L
KPN-A15-030-LV-LS6
10.0101046.L158/8_S6

Application: 40-200 g/m²

Diameter: Ø 158 mm

Smallest size: side edge and corner counting, offset from -4 up to +4mm

Basic Information:

The details of the GSM values are based on experience and tests. Depending on the product rigidity these values may differ.
Older produced counting discs for corner position are designated by 1xx,x for the diameter in "mm" and / or "V8 - V15" depending on the type.
Newly produced counting discs for corner position are designated by "C1-Cx“ depending on the type.
Newly produced counting discs for edge position are designated by "S1- Sx" depending on the type.
Warranty for the lifetime of the counting discs is not granted as the abrasive wear depends highly to the processed product.

Flexible

Paper
Security papers
Plastics
Cardboard
Post stamps
Envelopes
Tax stamps
Self-adhesive labels
and much more …

Universal

Large area of application
Processing offset edges
Processing curl up / curl down edges
Processing curl up / curl down corners
Processing intaglio printing etc.
Corner counting or corner and side edge counting

Gentle

Soft counting disc profiles
Low counting discs diameter
Low immersion depth
Low deformation
No damages / marks

Supply Range

Type	Part No.	Alternative Part No.	Diameter
R6,5 R6,5	KPN-A01-010-R KPN-A01-010-L	10.0101046.R119.6 10.0101046.L119.6	119,6 mm 119,6 mm
V8 V8	KPN-A01-080-R KPN-A01-080-L	10.0101046.R119.6/13V8 10.0101046.L119.6/13V8	119,6 mm 119,6 mm
V8 40gr	KPN-A01-081-R	10.0101046.R119.6V8_40GR	119,6 mm
V9 V9	KPN-A01-090-R KPN-A01-090-L	10.0101046.R129.6V9 10.0101046.L129.6V9	129,6 mm 129,6 mm
V10 V10	KPN-A01-100-R KPN-A01-100-L	10.0101046.R129.6V10 10.0101046.L129.6V10	129,6 mm 129,6 mm
V11 V11	KPN-A01-110-R KPN-A01-110-L	10.0101046.R129.6V11 10.0101046.L129.6V11	129,6 mm 129,6 mm
V11 40gr V11 40gr	KPN-A01-111-R KPN-A01-111-L	10.0101046.R129V11_40GR 10.0101046.L129V11_40GR	129,6 mm 129,6 mm
V12 V12	KPN-A01-120-R KPN-A01-120-L	10.0101046.R129.6V12 10.0101046.L129.6V12	129,6 mm 129,6 mm
V13 V13	KPN-A01-130-R KPN-A01-130-L	10.0101046.R139V13 10.0101046.L139V13	139 mm 139 mm
V15	KPN-A01-150-R	10.0101046.R139V15	139 mm
C1	KPN-A02-001-R	10.0101046.R112/13_C1	112 mm
C2 C2	KPN-A02-002-R KPN-A02-002-L	10.0101046.R129.6/10_C2 10.0101046.L129.6/10_C2	129,6 mm 129,6 mm
C3	KPN-A02-003-R	10.0101046.R119.6_C3	119,6 mm
S1 S1	KPN-A03-001-R KPN-A03-001-L	10.010101046.R139S1 10.010101046.L139S1	139 mm 139 mm
S2 S2	KPN-A03-002-R KPN-A03-002-L	10.0101046.R119.6/8_S2 10.0101046.L119.6/8_S2	119,6 mm 119,6 mm
S3 S3	KPN-A03-003-R KPN-A03-003-L	10.0101046.R119.6/8S3 10.0101046.L119.6/8S3	119,6 mm 119,6 mm
S4 S4	KPN-A03-004-R KPN-A03-004-L	10.0101046.R129.6/8_S4 10.0101046.L129.6/8_S4	129,6 mm 129,6 mm
S5 S5	KPN-A03-005-R KPN-A03-005-L	10.0101046.R129.6/8_S5 10.0101046.L129.6/8_S5	129,6 mm 129,6 mm
S6 S6	KPN-A03-006-R KPN-A03-006-L	10.0101046.R158/8_S6 10.0101046.L158/8_S6	158 mm 158 mm
S7 S7	KPN-A03-007-R KPN-A03-007-L	10.0101046.R158/8_S7 10.0101046.L158/8_S7	158 mm 158 mm

Download (pdf) Koster Disc Catalog
