Koster Disc Type C4

Koster
No reviews

Contact Us for Price Quote (use contact form on this page)

Contact Us for a Price Quote

Description

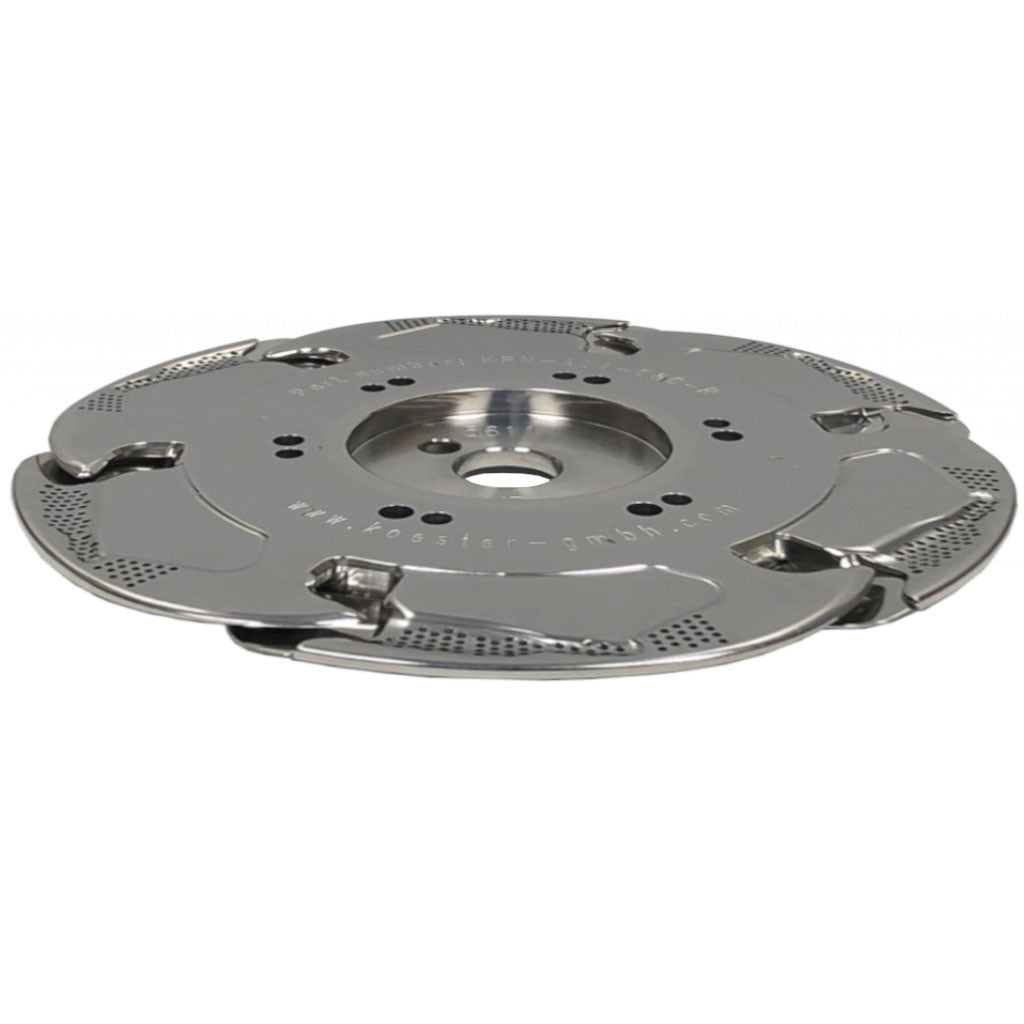

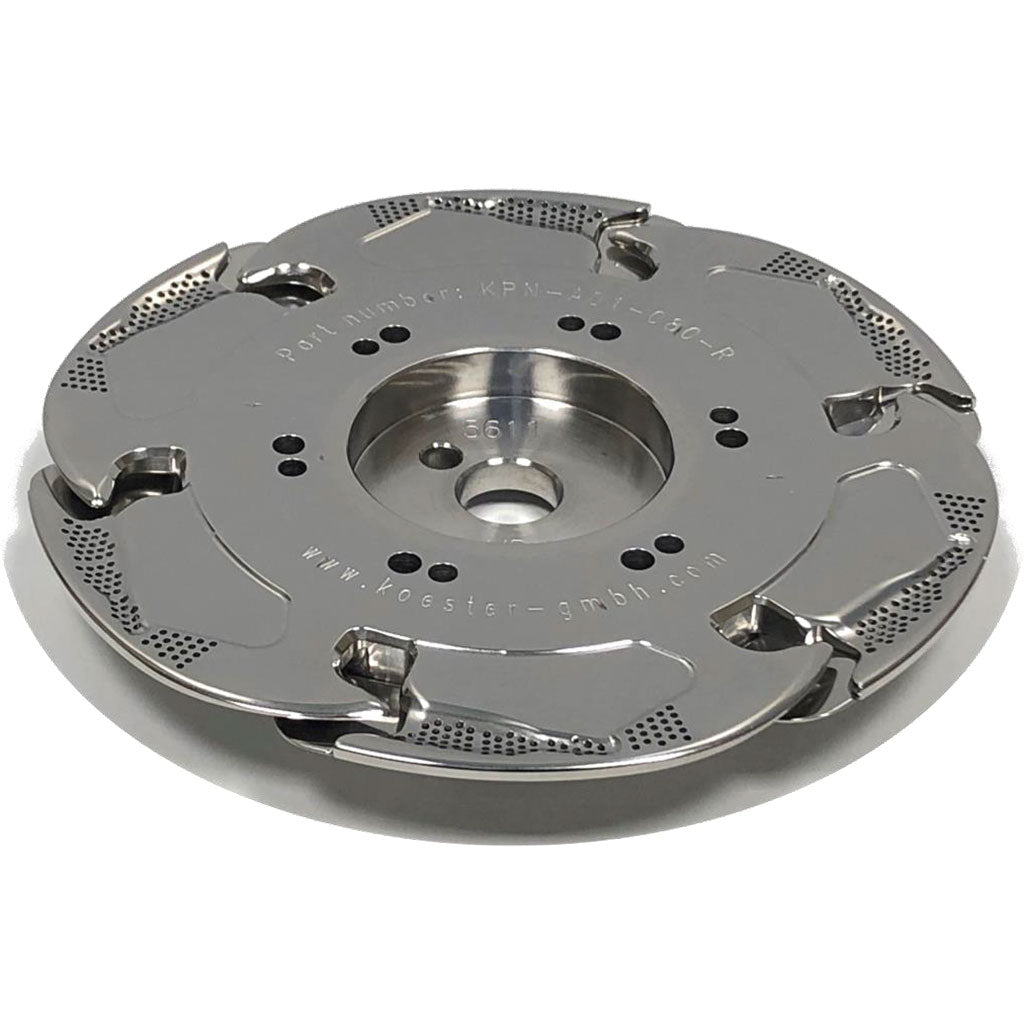

Koster C4 Counting Discs

Koster C4 Disc

Clockwise

KPN-A02-004-R

KPN-A15-020-RV-RC4

Application: 200-500 g/m

Diameter: Ø 158 mm

Smallest size: up to 500 g/m

Basic Information:

  • The details of the GSM values are based on experience and tests. Depending on the product rigidity these values may differ.
  • Older produced counting discs for corner position are designated by 1xx,x for the diameter in "mm" and / or "V8 - V15" depending on the type.
  • Newly produced counting discs for corner position are designated by "C1-Cx“ depending on the type.
  • Newly produced counting discs for edge position are designated by "S1- Sx" depending on the type.
  • Warranty for the lifetime of the counting discs is not granted as the abrasive wear depends highly to the processed product.

Flexible

  • Paper
  • Security papers
  • Plastics
  • Cardboard
  • Post stamps
  • Envelopes
  • Tax stamps
  • Self-adhesive labels
  • and much more …

Universal

  • Large area of application
  • Processing offset edges
  • Processing curl up / curl down edges
  • Processing curl up / curl down corners
  • Processing intaglio printing etc.
  • Corner counting or corner and side edge counting

Gentle

  • Soft counting disc profiles
  • Low counting discs diameter
  • Low immersion depth
  • Low deformation
  • No damages / marks

Supply Range


Type
Part No.
Alternative Part No.
Diameter
R6,5
R6,5
KPN-A01-010-R
KPN-A01-010-L
10.0101046.R119.6
10.0101046.L119.6
119,6 mm
119,6 mm
V8
V8
KPN-A01-080-R
KPN-A01-080-L
10.0101046.R119.6/13V8
10.0101046.L119.6/13V8
119,6 mm
119,6 mm
V8 40gr
KPN-A01-081-R
10.0101046.R119.6V8_40GR
119,6 mm
V9
V9
KPN-A01-090-R
KPN-A01-090-L
10.0101046.R129.6V9
10.0101046.L129.6V9
129,6 mm
129,6 mm
V10
V10
KPN-A01-100-R
KPN-A01-100-L
10.0101046.R129.6V10
10.0101046.L129.6V10
129,6 mm
129,6 mm
V11
V11
KPN-A01-110-R
KPN-A01-110-L
10.0101046.R129.6V11
10.0101046.L129.6V11
129,6 mm
129,6 mm
V11 40gr
V11 40gr
KPN-A01-111-R
KPN-A01-111-L
10.0101046.R129V11_40GR
10.0101046.L129V11_40GR
129,6 mm
129,6 mm
V12
V12
KPN-A01-120-R
KPN-A01-120-L
10.0101046.R129.6V12
10.0101046.L129.6V12
129,6 mm
129,6 mm
V13
V13
KPN-A01-130-R
KPN-A01-130-L
10.0101046.R139V13
10.0101046.L139V13
139 mm
139 mm
V15
KPN-A01-150-R
10.0101046.R139V15
139 mm
C1
KPN-A02-001-R
10.0101046.R112/13_C1
112 mm
C2
C2
KPN-A02-002-R
KPN-A02-002-L
10.0101046.R129.6/10_C2
10.0101046.L129.6/10_C2
129,6 mm
129,6 mm
C3
KPN-A02-003-R
10.0101046.R119.6_C3
119,6 mm
S1
S1
KPN-A03-001-R
KPN-A03-001-L
10.010101046.R139S1
10.010101046.L139S1
139 mm
139 mm
S2
S2
KPN-A03-002-R
KPN-A03-002-L
10.0101046.R119.6/8_S2
10.0101046.L119.6/8_S2
119,6 mm
119,6 mm
S3
S3
KPN-A03-003-R
KPN-A03-003-L
10.0101046.R119.6/8S3
10.0101046.L119.6/8S3
119,6 mm
119,6 mm
S4
S4
KPN-A03-004-R
KPN-A03-004-L
10.0101046.R129.6/8_S4
10.0101046.L129.6/8_S4
129,6 mm
129,6 mm
S5
S5
KPN-A03-005-R
KPN-A03-005-L
10.0101046.R129.6/8_S5
10.0101046.L129.6/8_S5
129,6 mm
129,6 mm
S6
S6
KPN-A03-006-R
KPN-A03-006-L
10.0101046.R158/8_S6
10.0101046.L158/8_S6
158 mm
158 mm
S7
S7
KPN-A03-007-R
KPN-A03-007-L
10.0101046.R158/8_S7
10.0101046.L158/8_S7
158 mm
158 mm

Download (pdf) Koster Disc Catalog
