Description
Dimensions: 24.4 × 12.7 × 4.05 in
Technical Specifications

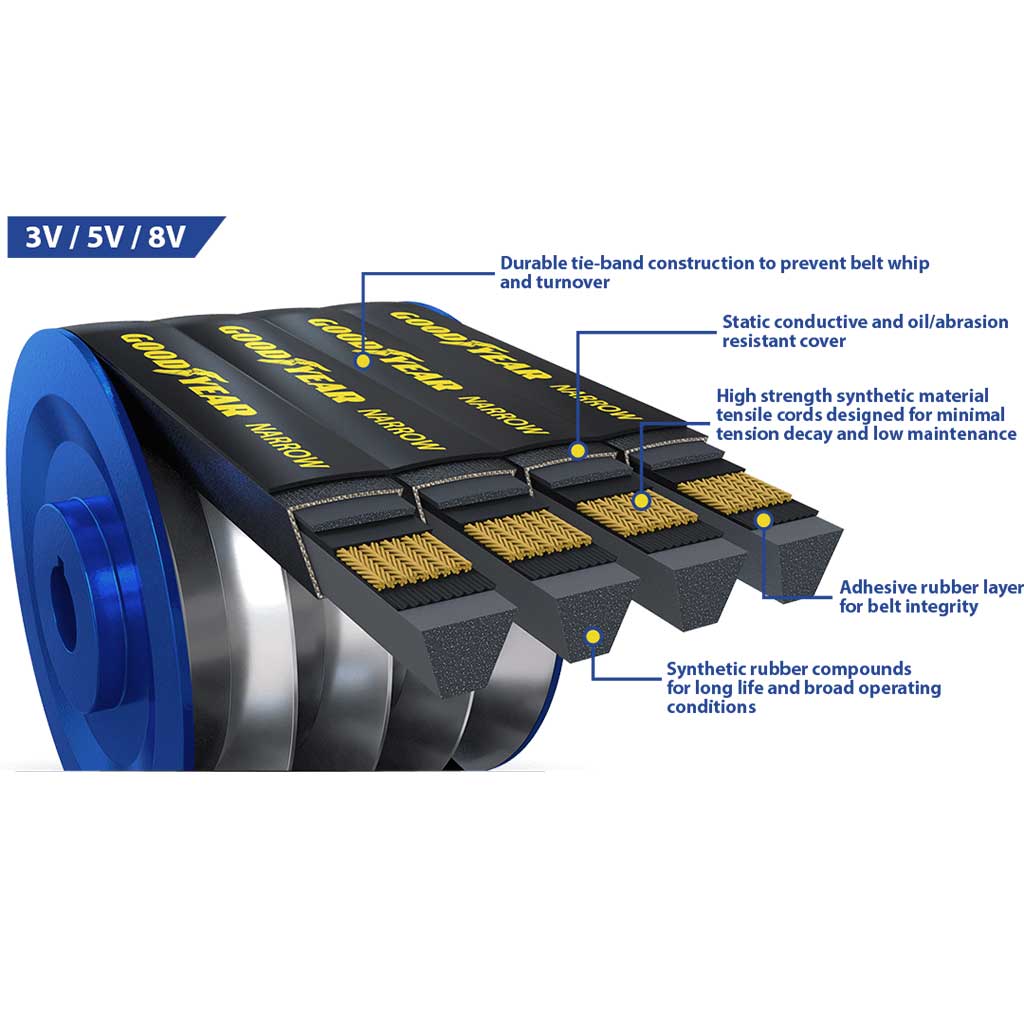

| Belt Type | Narrow Wrapped |
| Cord Material | Polyester |
| Goodyear Alternate P/n | - None - |
| V-belt Profile | 3V |

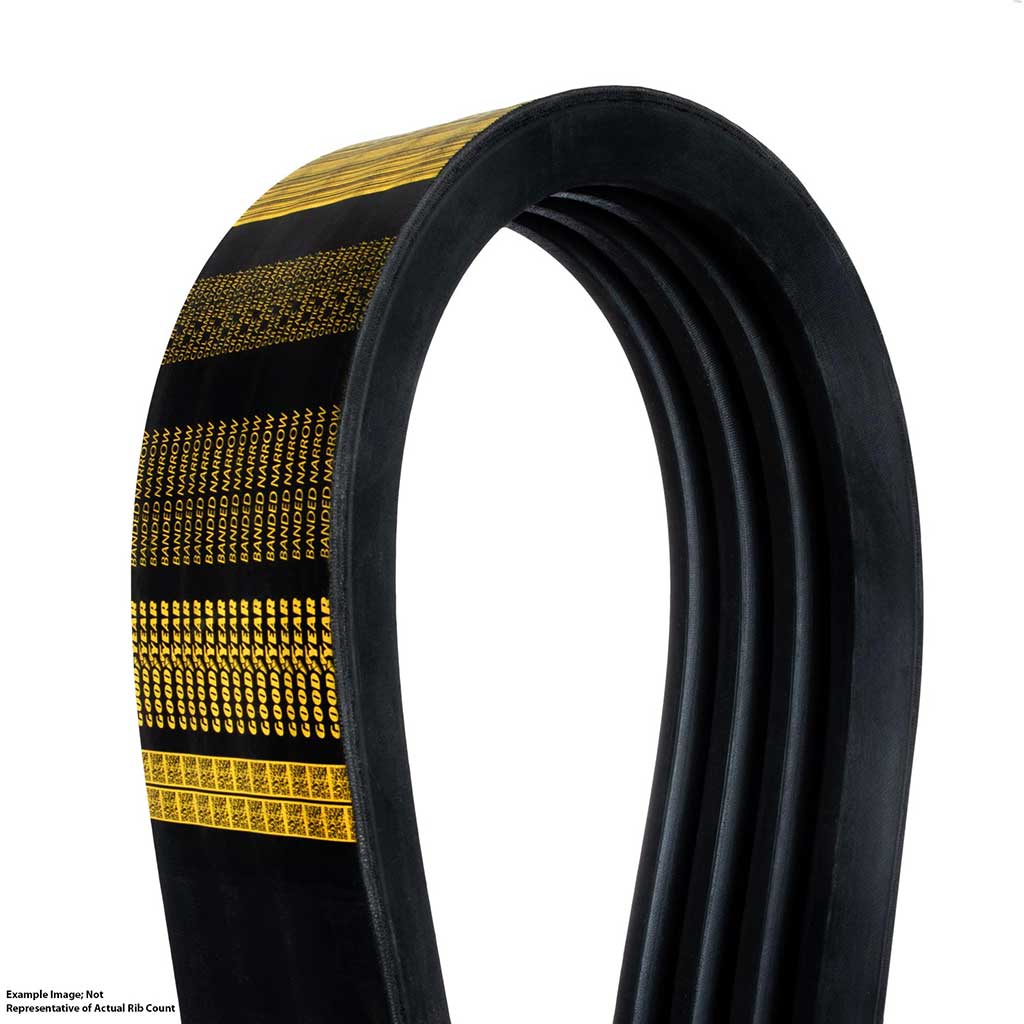

| Type | Banded V-Belt |
| Profile Series | |
| Multi-v Profile | 3V |
| Display Name Code | 10/3V450 |
| Effective Length (inch) | 45 |
| Effective Length (millimeter) | 1143 |
| Outside Circumfrence (inch) | 46.11 |
| Outside Circumfrence (millimeter) | 1171.2 |
| Thickness (inch) | 0.41 |
| Thickness (millimeter) | 10.4 |
| Top Width (inch) | 4.1 |
| Top Width (millimeter) | 104.1 |
| Rib Angle | 40º |
| Item Weight (lbs) | 2.5 |
| Item Weight (kg) | 1.13 |
| Case Weight (kg) | 1.5 |
| Case Weight (lbs) | 3.3 |
