Blebox P-gateBoxPro - gateBox PRO
Roll over image to zoom in Click on image to zoom
Blebox P-gateBoxPro - gateBox PRO

Blebox P-gateBoxPro - gateBox PRO

BleboxSKU: BB-P-gateBoxPro
Title: gateBox PRO
Price:
$108.00

Product Datasheets

Schematics - gateBox PRO v1 manual

Schematics - gateBox PRO v1 manual

Device Dimensions

QuickStart Instructions

Description

gateBox PRO

•  works with almost all electric gates and doors on the market

•  Manage users to give access to whomever you choose

•  Open and close gates or doors from anywhere

•  Easily check if the gate is opened or closed

gateBox allows you to control an unlimited number of doors or gates equipped with gateBox units from anywhere in the world, via your smartphone or tablet.

Specification

Supply voltage:

12-24V AC / DC
Power consumption:

less than 1W
Outputs number:

2
Outputs type:

open colector
Maximum current (channel:

20mA
Inputs number:

2
Inputs type:

logical, voltage
Inputs voltage:

12 - 24V AC / DC
Galvanic isolation:

Yes, optical
Inputs polarization:

detected automatically
Housing:

made of polyurethane composition not containing halogens, self-extinguishing for thermal class B (130 °C)
Protection Rating:

IP20
Transmission:

bi-directional, encrypted
Transmission frequency:

2.4GHz
Communication standard:

μWiFi, compatible with WiFi
Communication mode:

direct connection (as access point), Wi-Fi connection via a standard router, connection with access from any location in the world (requires access to the Internet)
Control with:

Apple iPhone, Apple iPad, iPad Mini, Android, computers and mobile devices operating a fully HTML5
Encryption:

WPA2-PSK and authenticated encryption with associated data (AEAD)

Payment & Security

American Express Apple Pay Discover Google Pay Mastercard PayPal Shop Pay Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

FAR AWAY FROM HOME?

Is your gate far away from your home? this is not a problem anymore: thanks to the use of a high gain antenna, the gateBox Pro is perfect for uses in gates which are far from the residential building and where the WiFi range is poor or unstable.

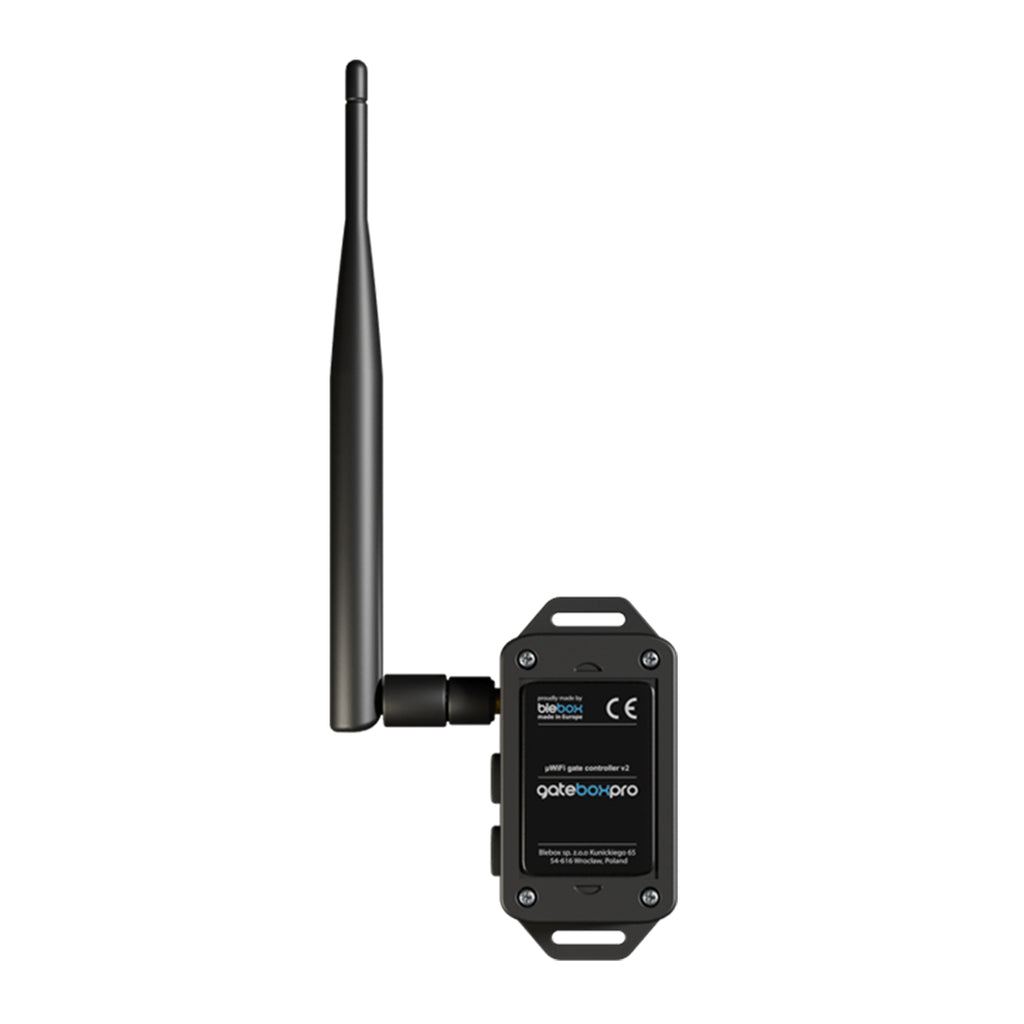

ANTENNA CONNECTOR

Do you need even higher range? Or maybe you want to hide the controller for example inside the motor case? You can add to the module an own antenna and using a RP-SMA pigtail (not attached in the kit), you can install it in a different place than the controller.

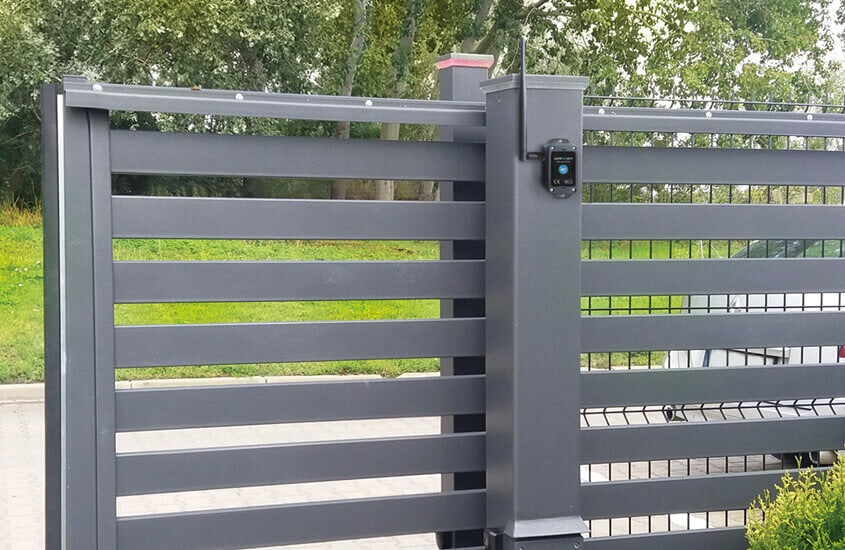

NO CONCERN ABOUT THE RAIN

Thanks to the housing with higher waterproof level, gateBox Pro can be installed also outside the buildings – e.g. in the fence posts or in the building wall, without additional protection.
