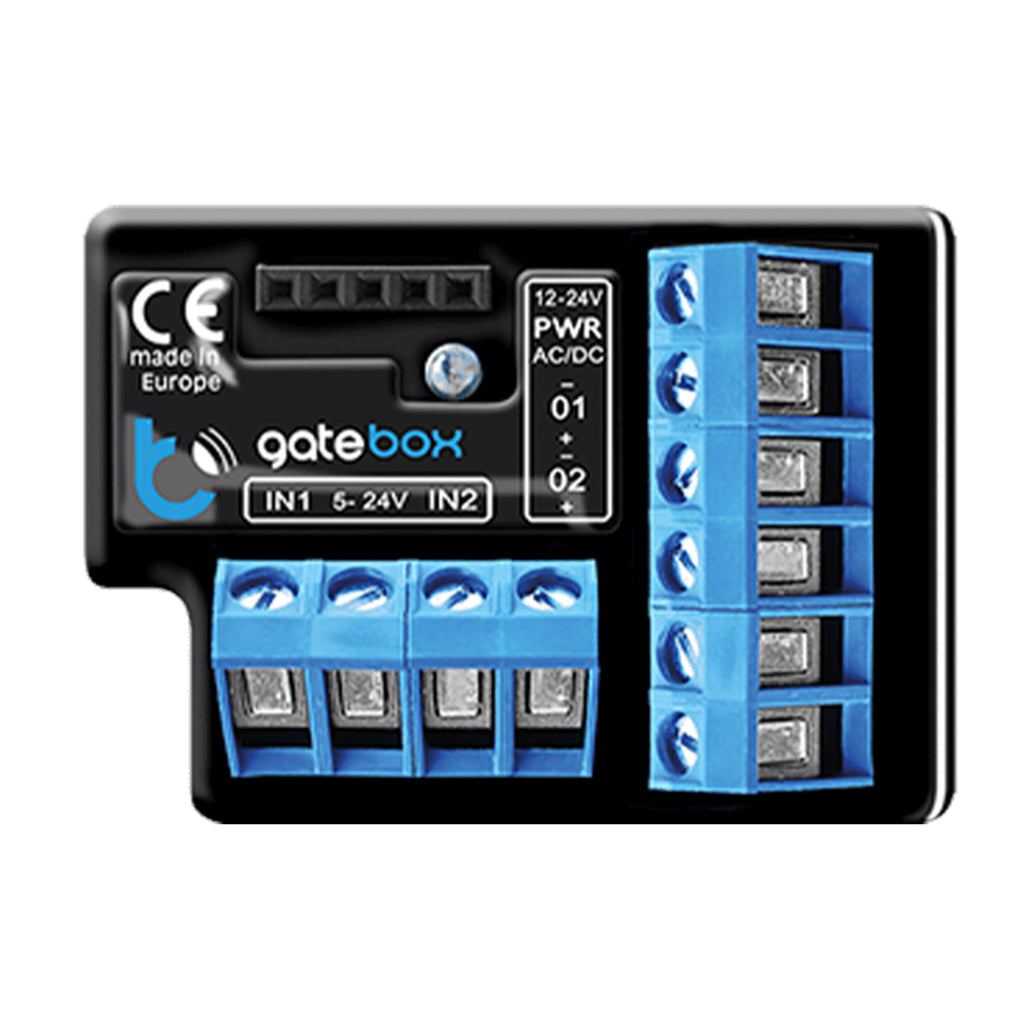

Blebox P-gateBox-v2 - gateBox
Roll over image to zoom in Click on image to zoom
Blebox P-gateBox-v2 - gateBox

Blebox P-gateBox-v2 - gateBox

BleboxSKU: BB-P-gateBox-v2
Title: gateBox
Price:
$85.00

Product Datasheets

Schematics - gateBox manual

Device Dimensions

QuickStart Instructions

Description

gateBox allows you to control an unlimited number of doors or gates equipped with gateBox units from anywhere in the world, via your smartphone or tablet.

gateBox

•  works with almost all electric gates and doors on the market

•  Manage users to give access to whomever you choose

•  Open and close gates or doors from anywhere

•  Easily check if the gate is opened or closed



Specification

Supply voltage:

12-24V AC / DC
Power consumption:

less than 1W
Outputs number:

2
Outputs type:

open colector
Maximum current (channel:

20mA
Inputs number:

2
Inputs type:

logical, voltage
Inputs voltage:

12 - 24V AC / DC
Galvanic isolation:

Yes, optical
Inputs polarization:

detected automatically
Housing:

made of polyurethane composition not containing halogens, self-extinguishing for thermal class B (130 °C)
Protection Rating:

IP20
Transmission:

bi-directional, encrypted
Transmission frequency:

2.4GHz
Communication standard:

μWiFi, compatible with WiFi
Communication mode:

direct connection (as access point), Wi-Fi connection via a standard router, connection with access from any location in the world (requires access to the Internet)
Control with:

Apple iPhone, Apple iPad, iPad Mini, Android, computers and mobile devices operating a fully HTML5
Encryption:

WPA2-PSK and authenticated encryption with associated data (AEAD)

Payment & Security

American Express Apple Pay Bancontact Discover Google Pay iDEAL Mastercard PayPal Shop Pay Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

COMFORT

gateBox allows you to control an unlimited number of doors or gates equipped with gateBox units from anywhere in the world, via your smartphone or tablet.

SECURITY

Now it is not necessary to have keys that can be misplaced, lost or which can fall into the wrong hands. Just by pressing a button on your phone we allow access to the property. If the phone is lost we can block access to devices.

SAY GOODBYE TO YOUR KEYS

Everybody knows the feeling when we stand in front of the gate with our shopping, and just a few second later we realize that we have left the keys in the car, at work or even worst at the store next to the cashier… With a gateBox connected to the gate it is not a problem anymore. Definitely we “watch our phone” more than our keys, and even if we lost it or somebody stole it, we don’t have to call locksmith to change the locks. All we have to do is to log-in from another mobile device and change the password — in a simple way we take the control of the house.
