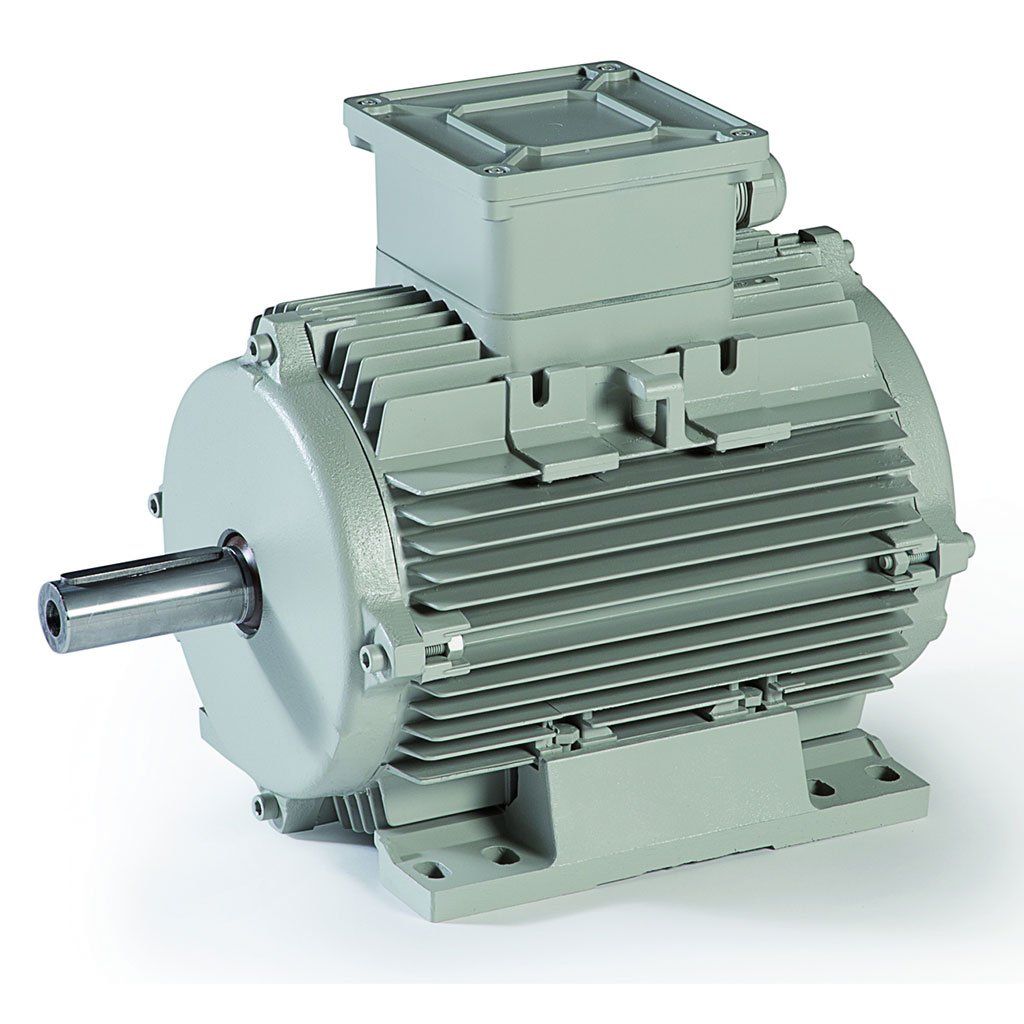

Electro Adda motor E3G 200L/4 B3 480-830-60, IE3, IP 55 KW 30

Electro Adda Motor E3G 200L/4 B3 480-830-60, IE3, IP 55 KW 30

S SERIES
SQUIRREL CAGE THREE-PHASE ASYNCHRONOUS MOTOR
Smoke extraction systems

Power 0,09÷500 kW
Frame sizes 63÷355
Insulation Class H
Efficiency classes IE1/IE2/IE3
2, 4, 6, 8 poles motors and multi speed motors
Suitable for inverter supply
IEC 60034-1, IEC 60034-30

Protection degree - cooling
IP 55 - IC 411 self ventilated
IP 55 - IC 418 external ventilation
Special construction for high
temperature operation:
Classes F200 (200°C for 120’)
F300 (300°C for 60/120’)
F400 (400°C for 120’)

Please contact us for a shipping quote.  Or reach out via the chat icon located bottom left for a quote 9a-5p EST.

Delivery 6-8 weeks.
