Dynapar Incremental Rotary Encoder 2212001010

Dynapar Incremental Rotary Encoder 2212001010 – 1200 PPR, 3/8” Shaft, MS Connector

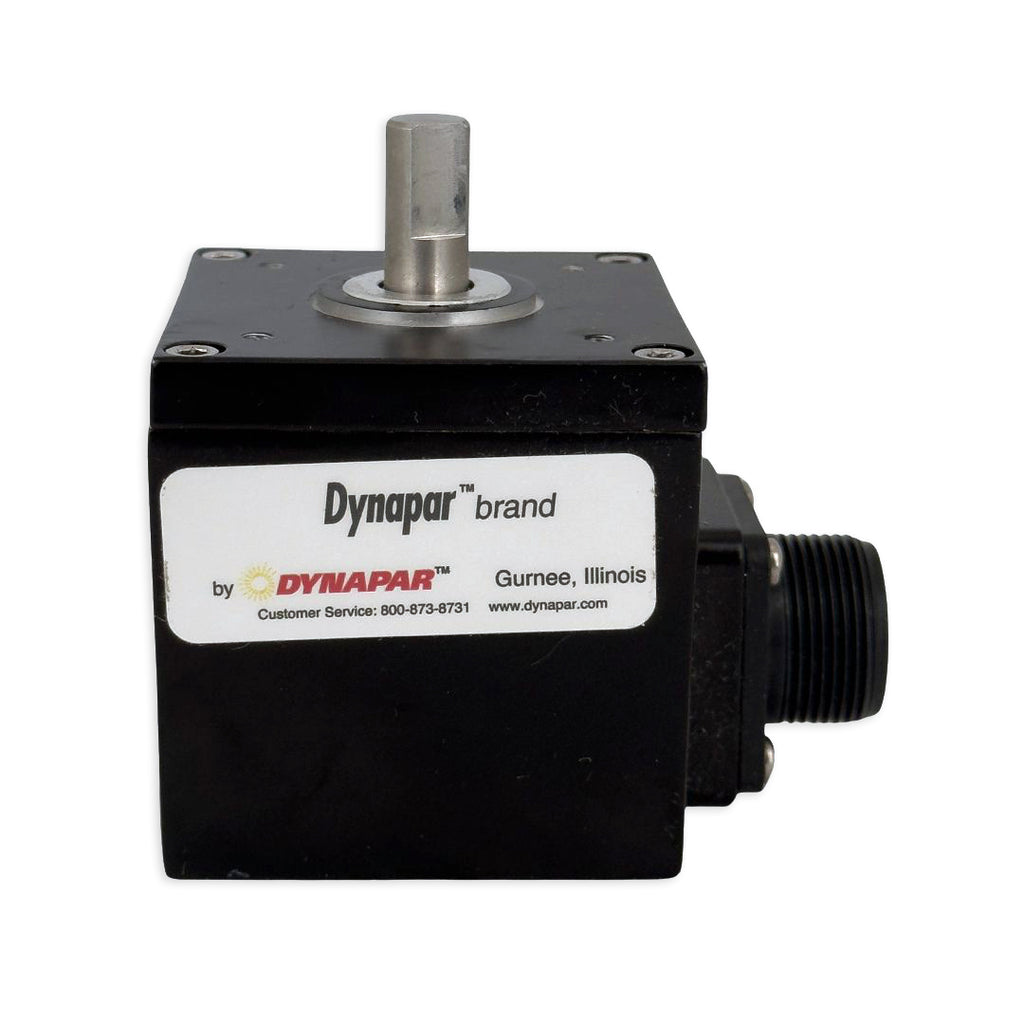

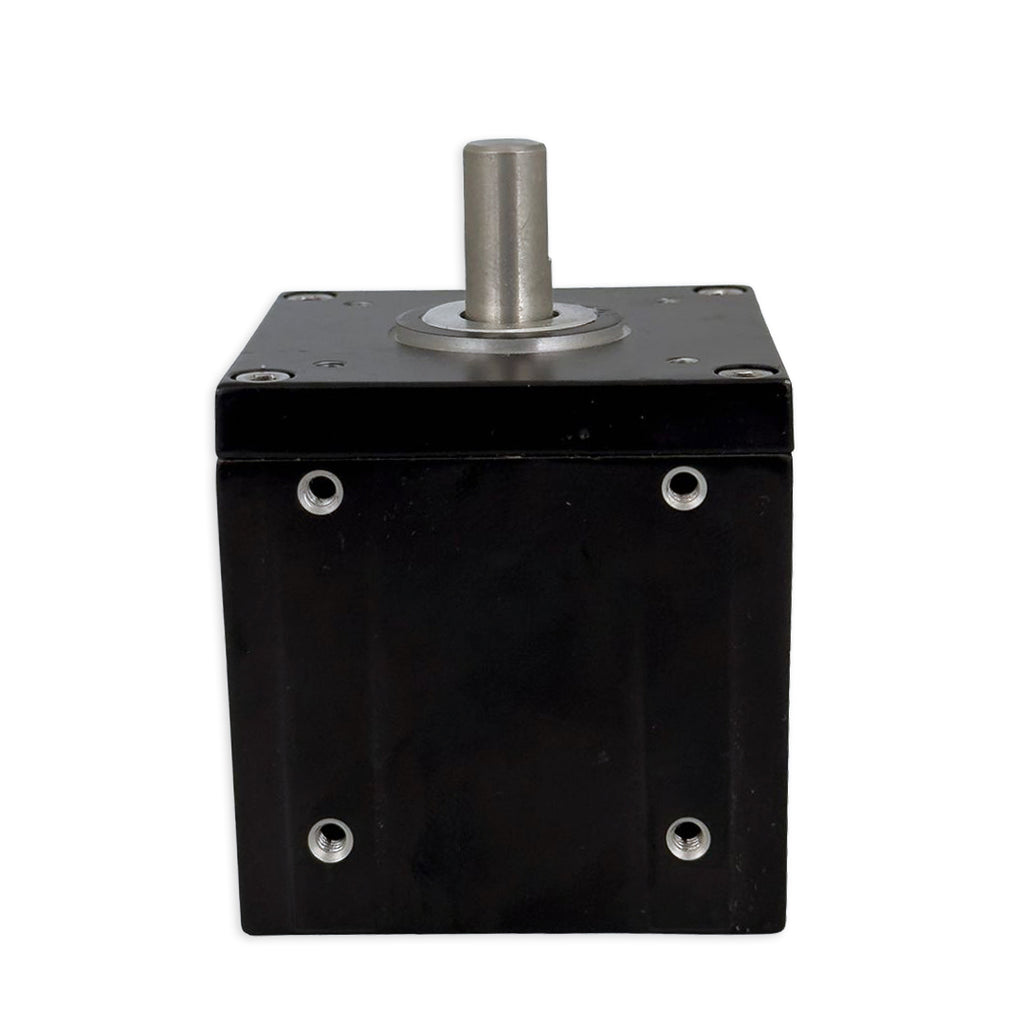

The Dynapar 2212001010 is a high-performance incremental rotary encoder engineered for precision motion control applications. Featuring a compact 22 size housing, this encoder delivers 1200 pulses per revolution (PPR) and operates over a wide voltage range of +5VDC to +26VDC. With a durable 3/8” shaft and MS-style connector, it ensures reliable operation in industrial environments.

The encoder outputs include dual signal channels (Signal A and Signal B) for quadrature output and indexing. Its open collector (OC) configuration supports flexible system integration. Designed for rugged environments, the Dynapar 2212001010 offers excellent durability and repeatable accuracy.

Key Specifications:

• Model: 2212001010

• Pulses Per Revolution (PPR): 1200

• Shaft Size: 3/8"

• Voltage Range: +5VDC to +26VDC

• Output Type: Open Collector (OC)

• Connector: MS-style

• Mounting Style: SNG (Single Ended Mount)

• Pin Functions:

  • A: Common

  • B: +5VDC to +26VDC

  • C: Case

  • D: Signal A

  • E: Signal B (if used)

  • F: Common

Manufactured to exacting standards (MGG#: 45293873-0001), this encoder is ideal for motion control systems, conveyors, automation setups, and more.
