Blebox P-doorBox-v1 - doorBox
Roll over image to zoom in Click on image to zoom
Blebox P-doorBox-v1 - doorBox

Blebox P-doorBox-v1 - doorBox

BleboxSKU: BB-P-doorBox-v1
Title: doorBox
Price:
$64.00

Product Datasheets

Schematics doorBox v1 manual

Schematics doorBox v2 manual

Device Dimensions

QuickStart Instructions

Description

Open and close your doors from anywhere in the world!

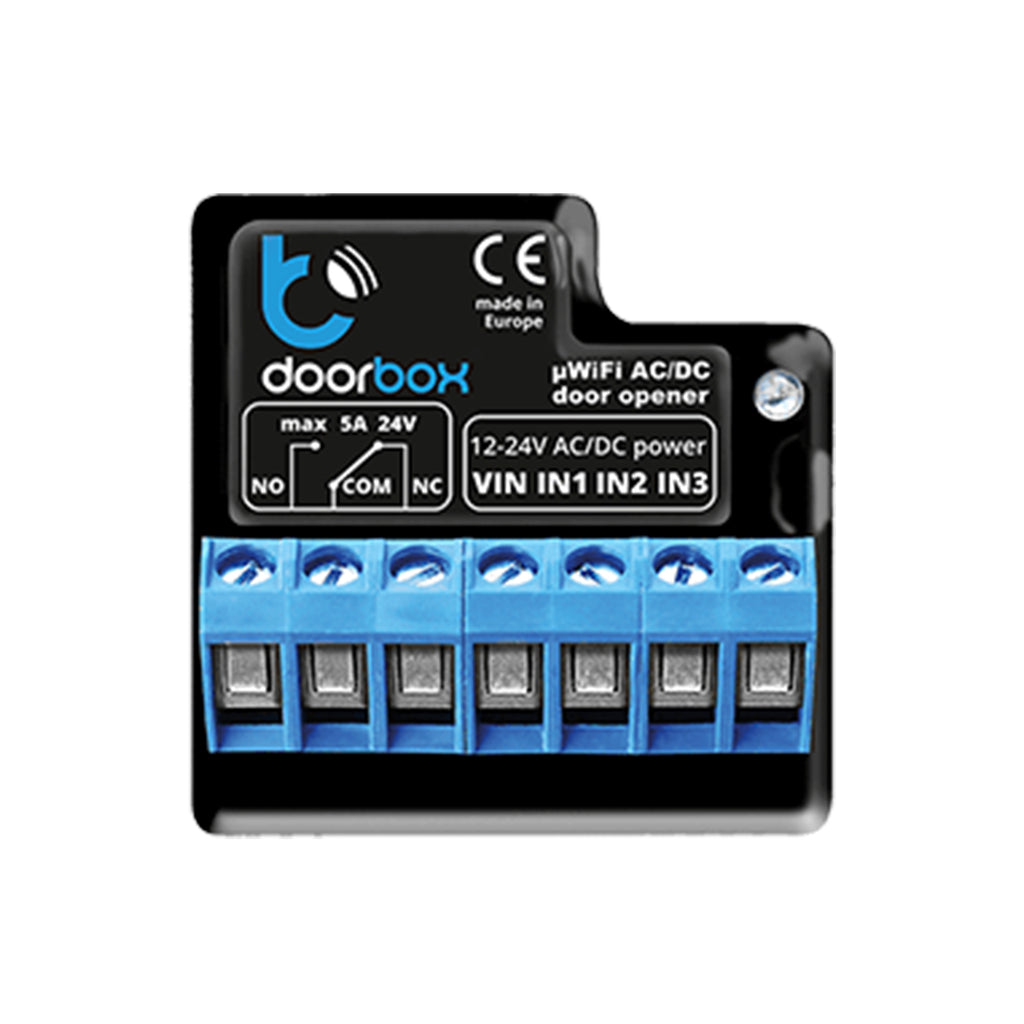

doorBox

•  works with almost all electric locks on the market

•  Manage users to give access to whomever you choose

•  Open and close gates or doors from anywhere

•  Easily check if the door is opened or closed

The wBox application is very easy to use. Quickly we can change the settings to control the devices from anywhere in the world. Easy start: you can begin to manage devices by purchasing a single module and then add as needed.

Specification

Supply voltage:

12-24V AC / DC
Power consumption:

less than 1W
Outputs number:

1
Outputs type:

relay
Max load:

6A 24V AC 6A 24V DC
Inputs voltage:

12 - 24V AC / DC
Galvanic isolation:

Yes, optical
Inputs polarization:

detected automatically
Housing:

made of polyurethane composition not containing halogens, self-extinguishing for thermal class B (130 °C)
Protection Rating:

IP20
Mounting:

in the flush-mounted box (deepen or double) in the receiver case.
Transmission:

bi-directional, encrypted
Transmission frequency:

2.4GHz
Communication standard:

μWiFi, compatible with WiFi
Communication mode:

direct connection (as access point), Wi-Fi connection via a standard router, connection with access from any location in the world (requires access to the Internet)
Control with:

pple iPhone, Apple iPad, iPad Mini, Android, computers and mobile devices operating a fully HTML5
Encryption:

WPA2-PSK and authenticated encryption with associated data (AEAD)
Control output type:

relay NC/NO
Maximum power:

144VA @ 24V AC 144W @ 24V DC

Payment & Security

American Express Apple Pay Bancontact Discover Google Pay iDEAL Mastercard PayPal Shop Pay Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

ACCESS CONTROL

When unexpected guests arrive at your home – you can open the pedestrian door and entrance door from anyplace in the world!

CHECK AT ANY TIME

The device also offers an input for open / close sensor (contact, reed switch or inductive sensor), allowing to check at any time whether the door or pedestrian door is open or closed

SAFE

For security reasons, doorBox in addition offers a optional access control by using a login with username and password
