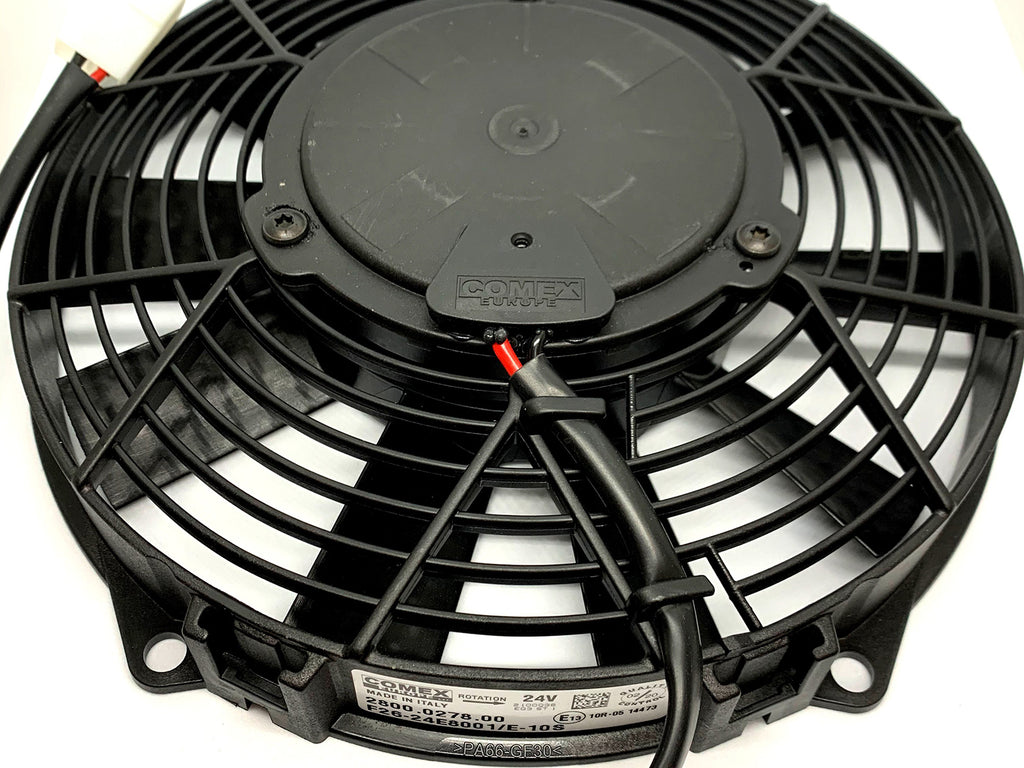

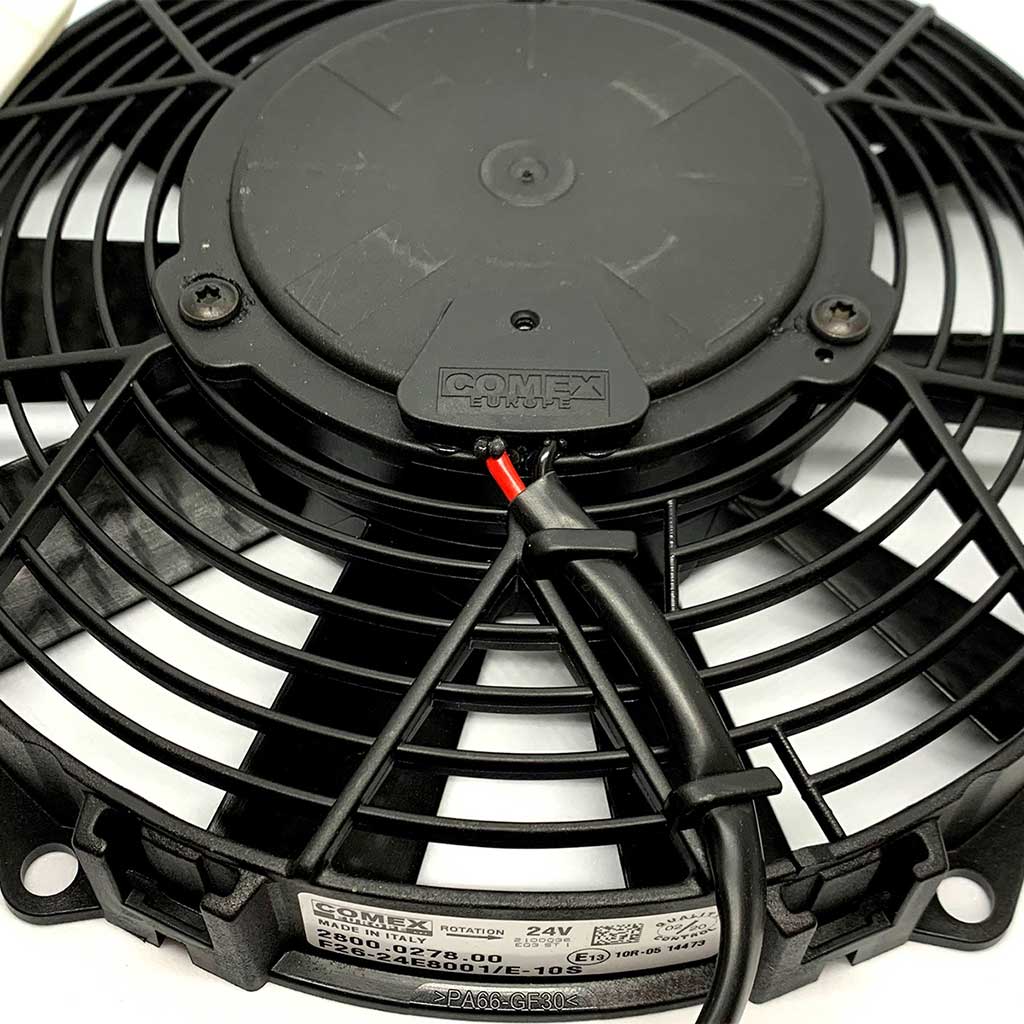

The Comex F26 Axial Cooling Fan is designed for reliable forced-air cooling applications. Featuring a 225 mm fan diameter and 246 mm overall diameter, the F26 series is available in 12V DC and 24V DC configurations with Push / Blowing or Pull / Suction airflow direction. Select the voltage and air direction that best suit your application.
Product Specifications
-
Manufacturer: Comex
-
Series: F26
-
Voltage: 12V DC or 24V DC (select variant)
-
Fan Diameter: 225 mm
-
Outer Diameter: 246 mm (verify across variants)
-
Depth: 53 mm (verify across variants)
-
Air Direction: Push / Blowing or Pull / Suction (select variant)
-
Fan Type: Axial Fan
Available Models
| Comex Model |
SKU |
Voltage |
Air Direction |
| F26-12E8001/E-10B |
58010 |
12V DC |
Push / Blowing |
| F26-12E8001/E-10S |
58162 |
12V DC |
Pull / Suction |
| F26-24E8001/E-10B |
58012 |
24V DC |
Push / Blowing |
| F26-24E8001/E-10S |
58013 |
24V DC |
Pull / Suction |
Technical Note: Current draw and airflow performance may vary by model and voltage. The F26-24E8001/E-10S (SKU 58013) is specified at 4 A and 1,200 m³/h. Refer to the manufacturer's datasheet for model-specific specifications.
Download datasheet – F26-24E8001/E-10S (PDF)
Please note: Availability and lead times are subject to change. Contact P&P Distributors to confirm compatibility and current delivery before ordering.
