Blebox P-bRSMG - blebox reedSwitch
Roll over image to zoom in Click on image to zoom
Blebox P-bRSMG - blebox reedSwitch

Blebox P-bRSMG - blebox reedSwitch

BleboxSKU: BB-P-bRSMG
Title: blebox reedSwitch
Price:
$11.00

Product Datasheets

Schematics - blebox reedSwitch

Device Dimensions

QuickStart Instructions

Description

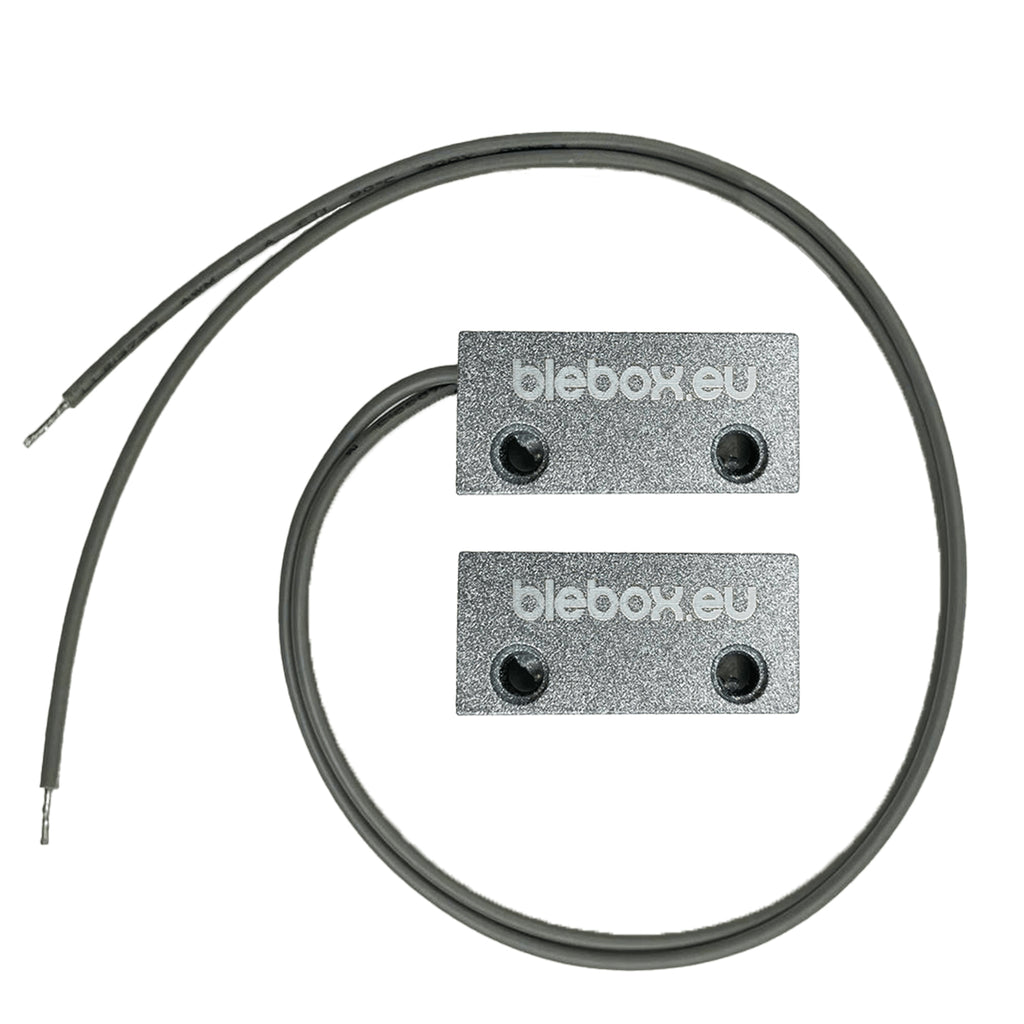

blebox reedSwitch

Connect to other BleBox controllers to:

  • Detect gate opening or closing
  • Detect windows opening or closing
  • Detect the opening or closing of doors, gates
  • Control other devices after opening or closing gates, windows, doors, gates
  • Receive notifications on the phone after opening or closing gates, windows, doors, gates

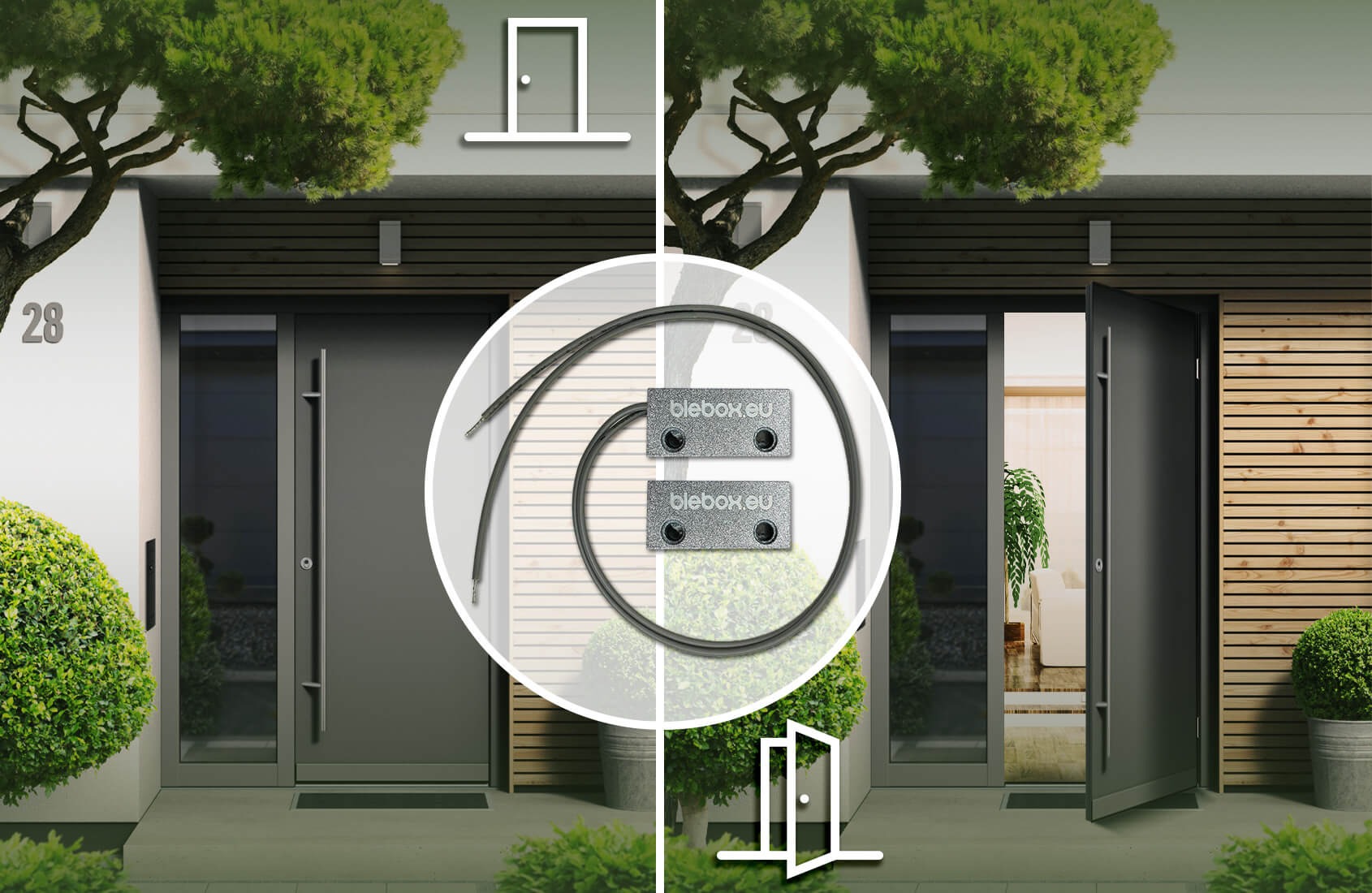

Reed switch for detecting the position of the gate, windows, doors, wickets

Control your devices remotely with the Blebox P-bRSMG Blebox P-bRSMG - blebox reedSwitch, a smart relay controller engineered for seamless home automation. With reliable wireless communication and easy setup, it’s perfect for lights, appliances, and more.

Accessory for:

*soon

Specification

Dimensions:

32 x 15 x 8 mm
mounting holes diameter:

3.5mm
mounting holes spacing:

20mm
magnet - sensor detection gap:

up to 15mm
maximum switching voltage:

100V
maximum switching current:

100mA
cable length:

250mm
Housing:

aluminium

Payment & Security

American Express Apple Pay Discover Google Pay Mastercard PayPal Shop Pay Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Reed switches

The reed switch is connected to the inputs of various BleBox controllers, which makes it possible to detect the opening or closing of doors, gates, wickets, windows, etc.

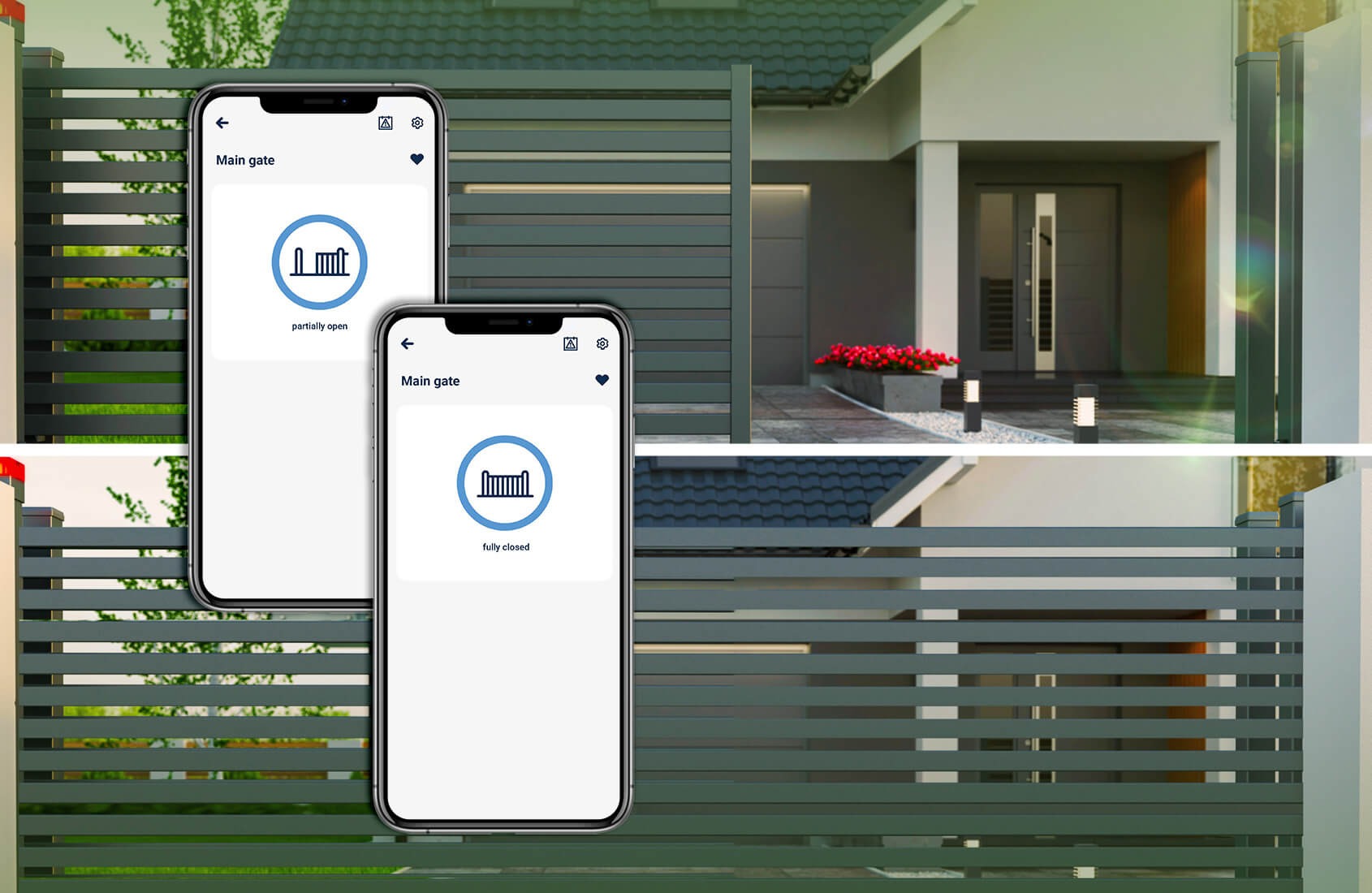

Gates - gateBox & gateBox PRO

Connect the reed switches to the WiFi gateBox or gateBox PRO controller to enable status detection

-gate open (with intermediate state: “partially open”)
the gate is closed
-unexpected opening of the gate (e.g. unlocked gate and manual opening)
-gate not closed for a certain period (e.g. gate open for 30 minutes)

In addition to the gate status visible in the application, the controller can send a notification to the phone, as well as an order to other BleBox controllers via a local WiFi network (without the Internet).

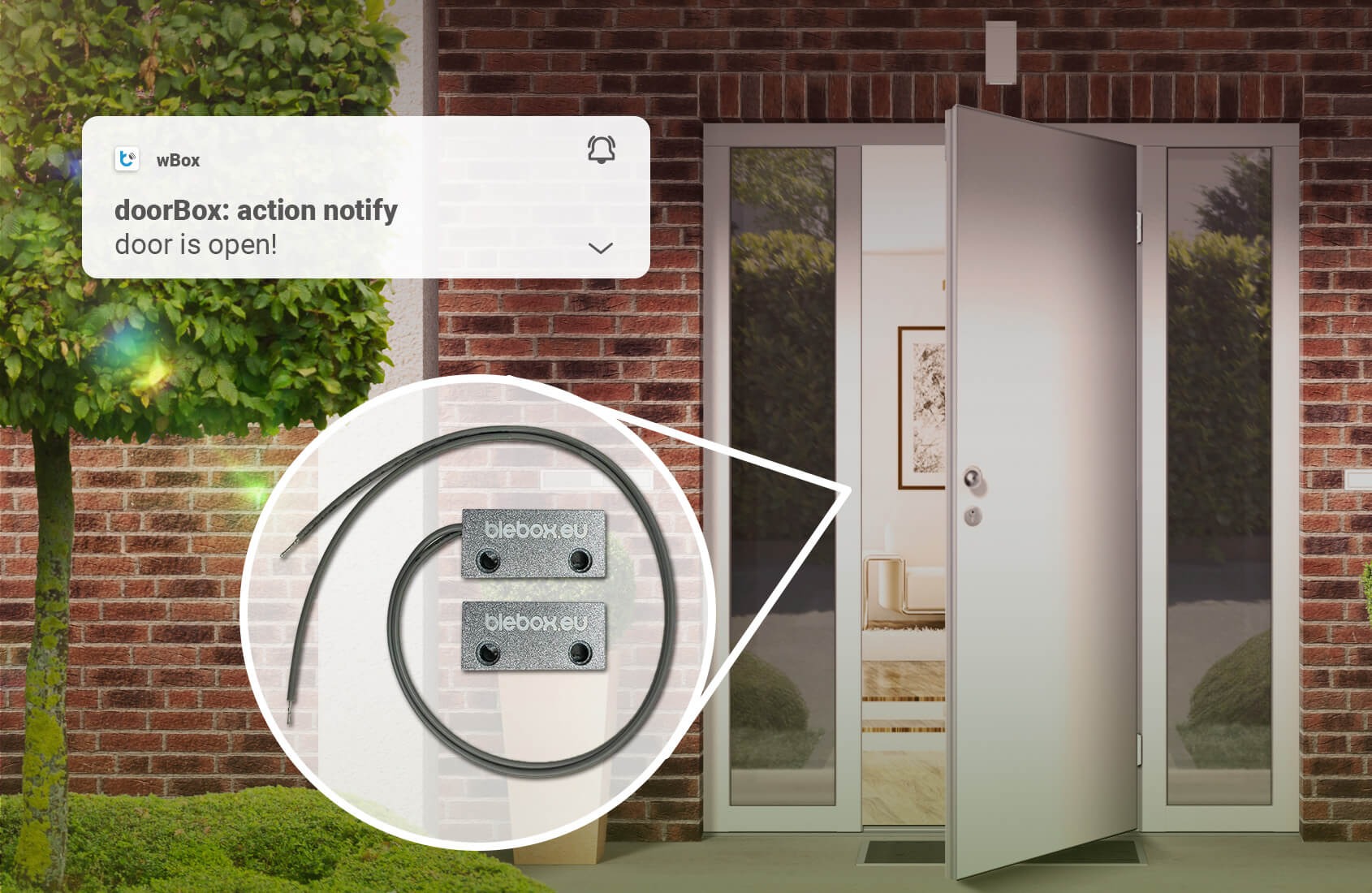

Door - doorBox

Connect the reed switch to the WiFi doorBox or doorBox PRO* controller to enable detection of the status:

-the door is open, the gate is open
-the door is closed, the gate is closed

In addition to the status visible in the application, the controller can send a notification to the phone, as well as an order to other BleBox controllers via a local WiFi network (without the Internet).

*soon
