Blebox ampBox - ampBox
Roll over image to zoom in Click on image to zoom
Blebox ampBox - ampBox

Blebox ampBox - ampBox

BleboxSKU: BB-ampBox
Title: ampBox
Price:
$24.00

Product Datasheets

Schematics - ampBox manual

Device Dimensions

QuickStart Instructions

Description

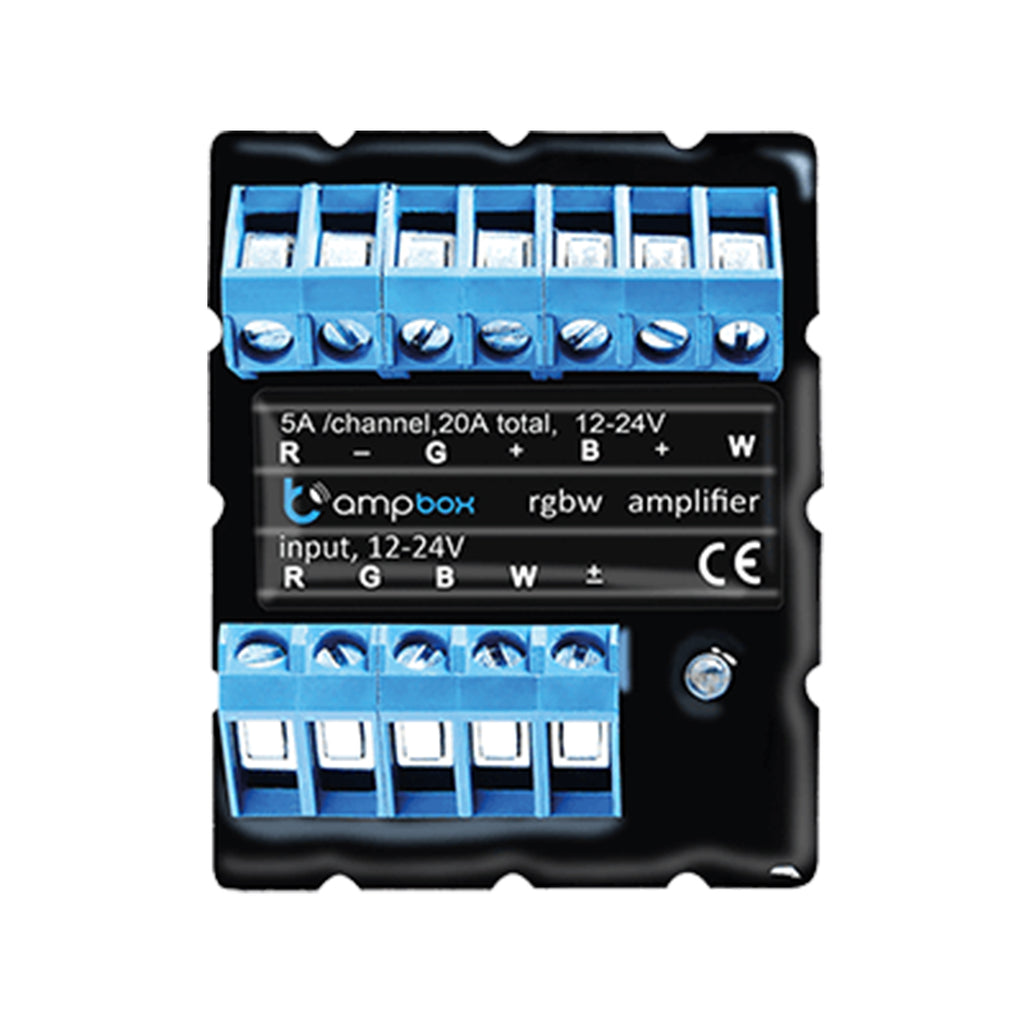

ampBox

•  high power (up to 480W) in small form

•  digital signal enhancement

•  optical isolation for safety

•  ready for RGBW lighting

Boost your smart system’s performance with the Blebox ampBox Blebox ampBox - ampBox, a compact power amplifier that enhances signal strength and load capacity in demanding setups.

Specification

Supply voltage:

12-24V DC
Maximum current:

20 A
Maximum current (channel:

5 A
Number of channels:

4
Maximum power:

480W
Energy consumption:

> 0,1W
Dimensions:

48x40x19 mm
Housing:

non-flammable resin which dissipates heat
Mounting:

in the flush-mounted box inside the housing of the lighting
Input signal:

PMW common VCC or GND
Galvanic separation:

yes- optical
Correction signal:

yes - digital
Protection Rating:

IP20
Connection method:

screw terminal block connector
Controller operating temperature:

from -10 to +40°C
Output signal:

PMW common VCC
Power IC:

internal rectifiers N-type metal oxide semicontuctor field effect transistor

Payment & Security

American Express Apple Pay Discover Google Pay Mastercard PayPal Shop Pay Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

UNIVERSAL

ampbox works with virtually every type of LED strip.

SAFETY

ampbox allows users to attach significant LED lighting loads while still providing a safe lighting system, both indoors and outdoors.

SMALL

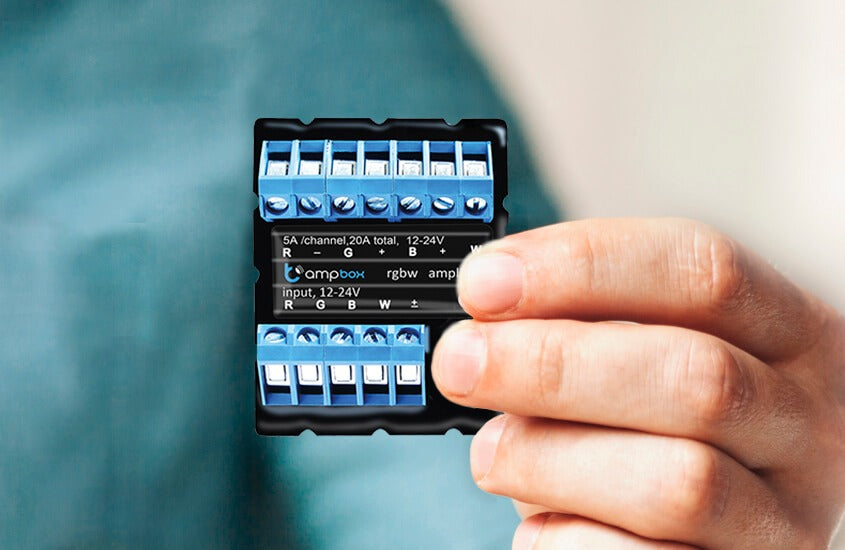

Due to its compact size, ampbox can be installed in several different locations around the house to manage your lighting system.
