Blebox actionBoxS - actionBoxS
Roll over image to zoom in Click on image to zoom
Blebox actionBoxS - actionBoxS

Blebox actionBoxS - actionBoxS

BleboxSKU: BB-actionBoxS
Title: actionBoxS
Price:
$31.00

Product Datasheets

actionBoxS User Manual

Device Dimensions

QuickStart Instructions

Description

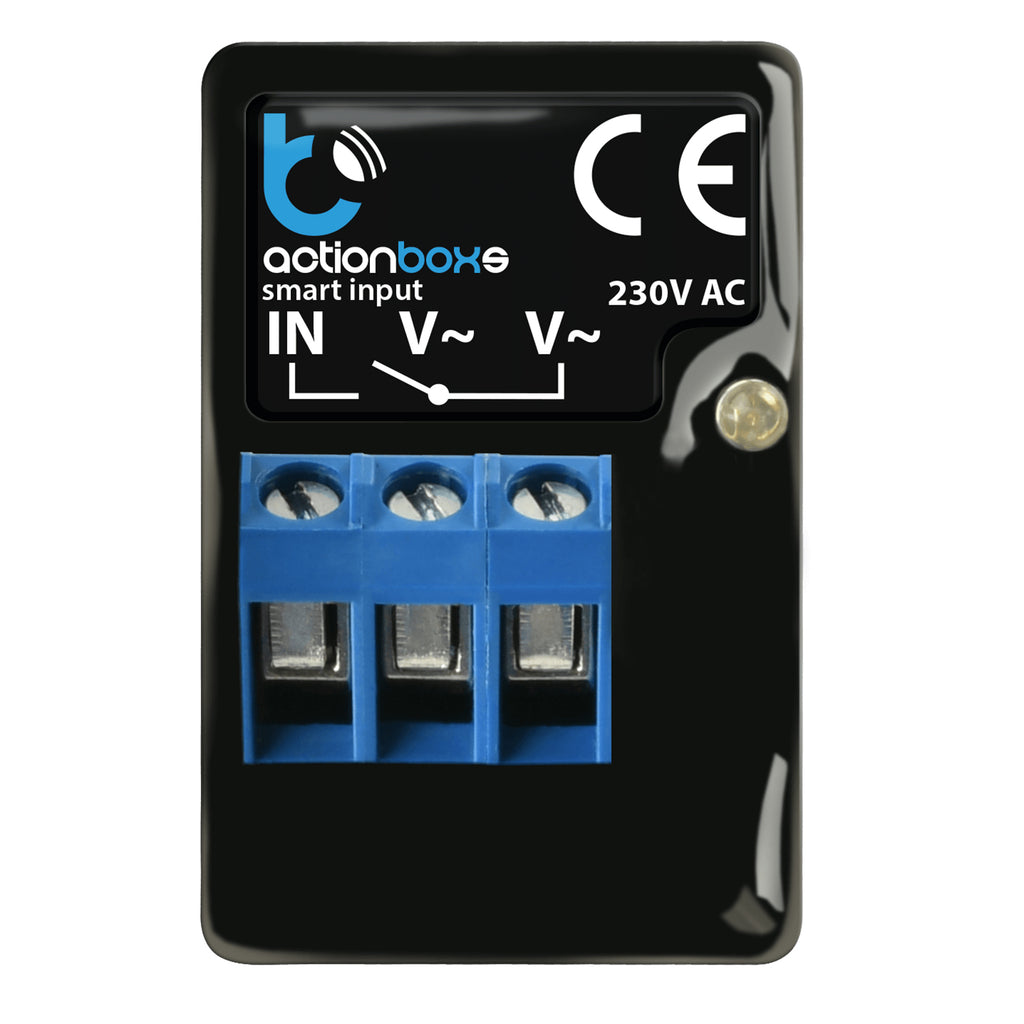

actionBoxS

  • Wireless control of other BleBox controllers via WiFi network
  • Up to 30 control actions and notifications can be configured
  • Powered by 230V, use any signal as actions (button, PIR motion sensor)

Specification

Supply voltage:

230V AC
Energy consumption:

< 1W
Inputs number:

1
Inputs voltage:

230V AC
Typ wejść:

logical, pushbutton, short circuited to N, configurable
Supported switches:

monostable (push-button), bistable (traditional, cross switch), not-illuminated
Dimensions:

actionBoxS: 25 x 39 x 24 mm || actionBoxS W (Wired): 25 x 39 x 19 mm
Protection Rating:

IP20
Controller operating temperature:

od -10 do + 40°C
Mounting method:

in the flush-mounted box, on the housing of othe device
Housing:

made of polyurethane composition not containing halogens, self-extinguishing for thermal class B (130 °C)
Communication standard:

μWiFi, compatible with WiFi, 802.11g
Radio frequency:

2.4 GHz
Transmission type:

bidirectional, encrypted
Encryption:

WPA2-PSK and authenticated encryption with associated data (AEAD)
API:

open
Mode:

direct connection (as Access Point), Wi-Fi connection via a standard router, connection with access from any location in the world (re- quires only access to the Internet)
Compatible devices and systems:

Apple iPhone, Apple iPad, iPad Mini, Android, computers and mo- bile devices supporting HTML5

Payment & Security

American Express Apple Pay Discover Google Pay Mastercard PayPal Shop Pay Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Signal as a notification

After receiving a signal, e.g. from a motion sensor, a water level sensor (e.g. a waste tank) or another alarming device (smoke detector), the controller may send a notification to the phone. Don’t worry about missing an event.

Signal as control action

Add an actionBoxS to a motion sensor, for example, to control other BleBox controllers.

For example: After motion detection, wirelessly turn on / off lights in the entire garden using WiFi, without running separate light circuits or adding many motion sensors.

Central button

If you need to create a single, central button or turn on many different devices at the same time, you can do it with the actionBoxS, put it in the button box and control various controllers at the same time via the WiFi network
