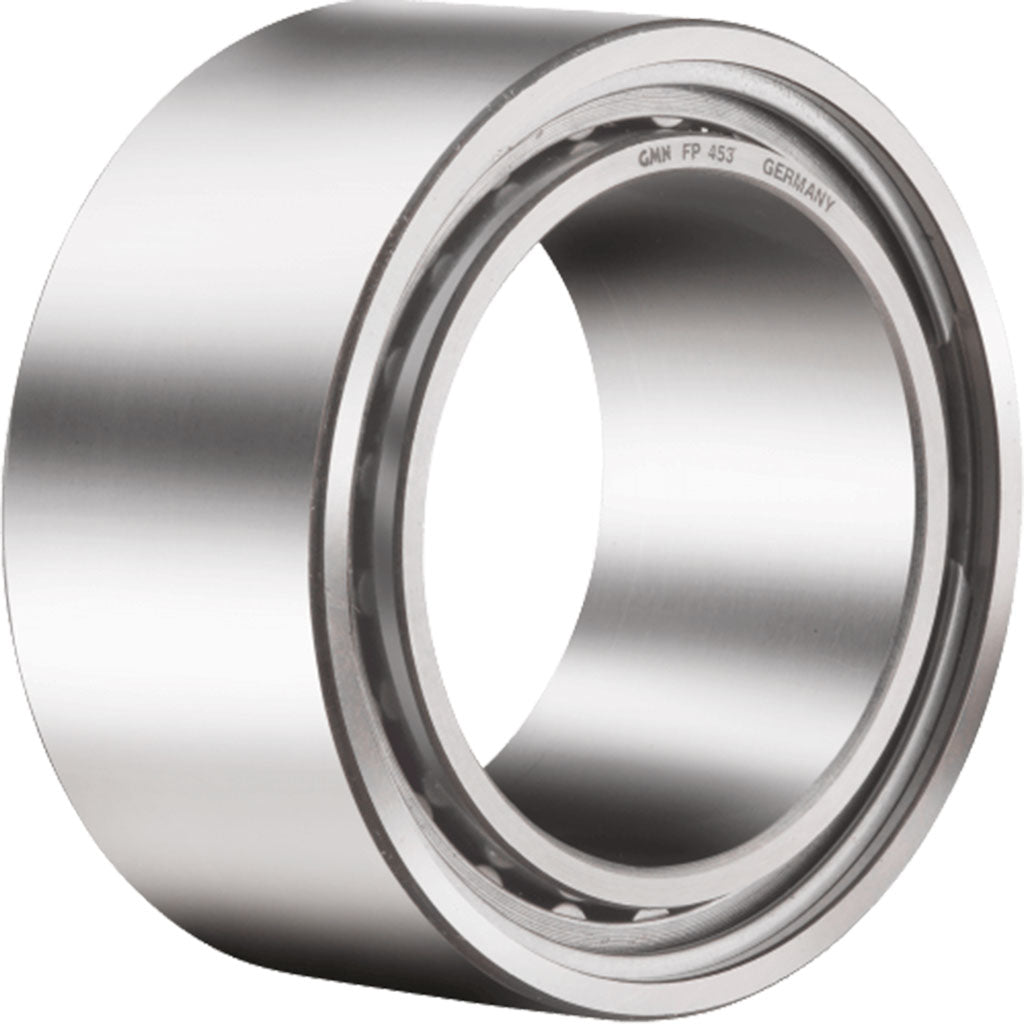

GMN Bearing Complete Sprag Clutch Units

GMNSKU: GMN-SPRAG-CLUTCH
No reviews

Contact Us for Price Quote (use contact form on this page)

Contact Us for a Price Quote

Description

High Torque Capacity Clutches

These complete units are designed with built-in roller bearings and ball bearings making it the most powerful and robust clutch in the GMN product line. Therefore, this is great for machines that require a heavy load and high torque from the clutch.

The torque capacity of these is 53 to 588 Mn, and they have a bore (ID) size of 10 to 60 mm (0.393 to 2.362 in).

P&P supplies GMN’s FP, FPD, FN, and FND series sprag clutch units.

Specs at a glance:

  • Clutch Width (mm): 27 (open) or 34 (sealed)
  • Operating Temperature: 212°F (100°C) or 284°F (140°C)
  • ID Size Range (mm): 10 to 60
  • OD Size Range (mm): 31 to 110
  • Torque (Nm): 60 to 588
  • Inner Ring: Press Fit and/or Keyway
  • Outer Ring: Press fit and/or Mounting Tab
  • Bearing Style: Integrated Ball and Roller Bearings
  • Lubrication: Oil or Grease
  • Seals: Rubber Seals or No Seals

Options

Clutch Width (mm) 27 (open) or 34 (sealed)
Operating Temperature 212°F (100°C) or 284°F (140°C)
ID Size Range (mm) 10 to 60
OD Size Range (mm) 31 to 110
Torque (Nm) 60 to 588
Inner Ring Press Fit and/or Keyway
Outer Ring Press Fit
Bearing Style Integrated Ball and Roller Bearings
Lubrication Oil or Grease
Seals Rubber Seals or No Seals



View GMN Sprag Type Freewheel Clutches Catalog (pdf)

Contact Us for a price quote (see contact form above ↑)
