GMN FE 400 Series - Sprag Clutch Insert Elements w/o Mounting Rings

GMN
No reviews

Contact Us for Price Quote (use contact form on this page)

Contact Us for a Price Quote

Description

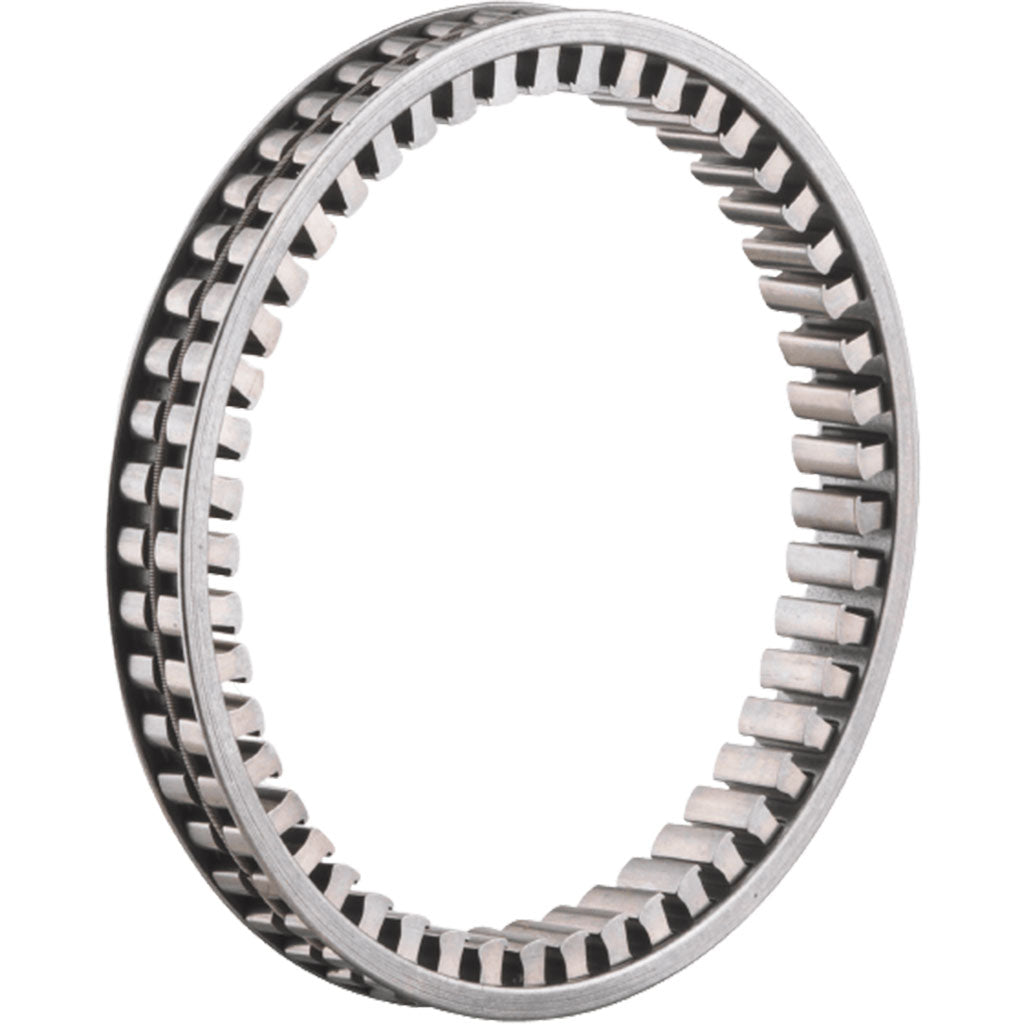

Sprag Clutch Elements (400 Series)

The GMN FE 400 Series is designed without mounting rings, ready to place on a shaft and housing that is hardened and ground

No built-in ball bearing support.

Good for large orders & low to high torque needs: 1 to 2673 Nm. Bore (ID) sizes: 2 to 240 mm (0.078 to 9.448 in)

A Sprag Clutch Insert Element consists of a cage, sprags, and a spring. The spring is designed to keep the sprags in contact with the shaft and housing at all times.

GMN Sprag Clutch Insert Elements, 400 Series are the perfect cost-effective solution when you don’t need integrated ball bearing support and/or you need multiple sprag clutches. These options can all be achieved without sacrificing torque requirements.

The GMN sprag clutch insert elements can be used for overrunning, backstopping, or indexing applications.

Series 400 Product Characteristics

  • Bore (ID) Range: 2 to 240 mm (0.078 to 9.448 in)
  • Torque Range: 1 to 2673 Nm
  • With or Without Mounting Rings
  • If external bearing support is required, we recommend adding the GMN RL series.

View GMN Sprag Type Freewheel Clutches Catalog (pdf)

Contact Us for a price quote (see contact form above ↑)
