GMN Bearing KH Series Bearings

GMNSKU: GMN-KH-600
No reviews

Contact Us for Price Quote (use contact form on this page)

Contact Us for a Price Quote

Description

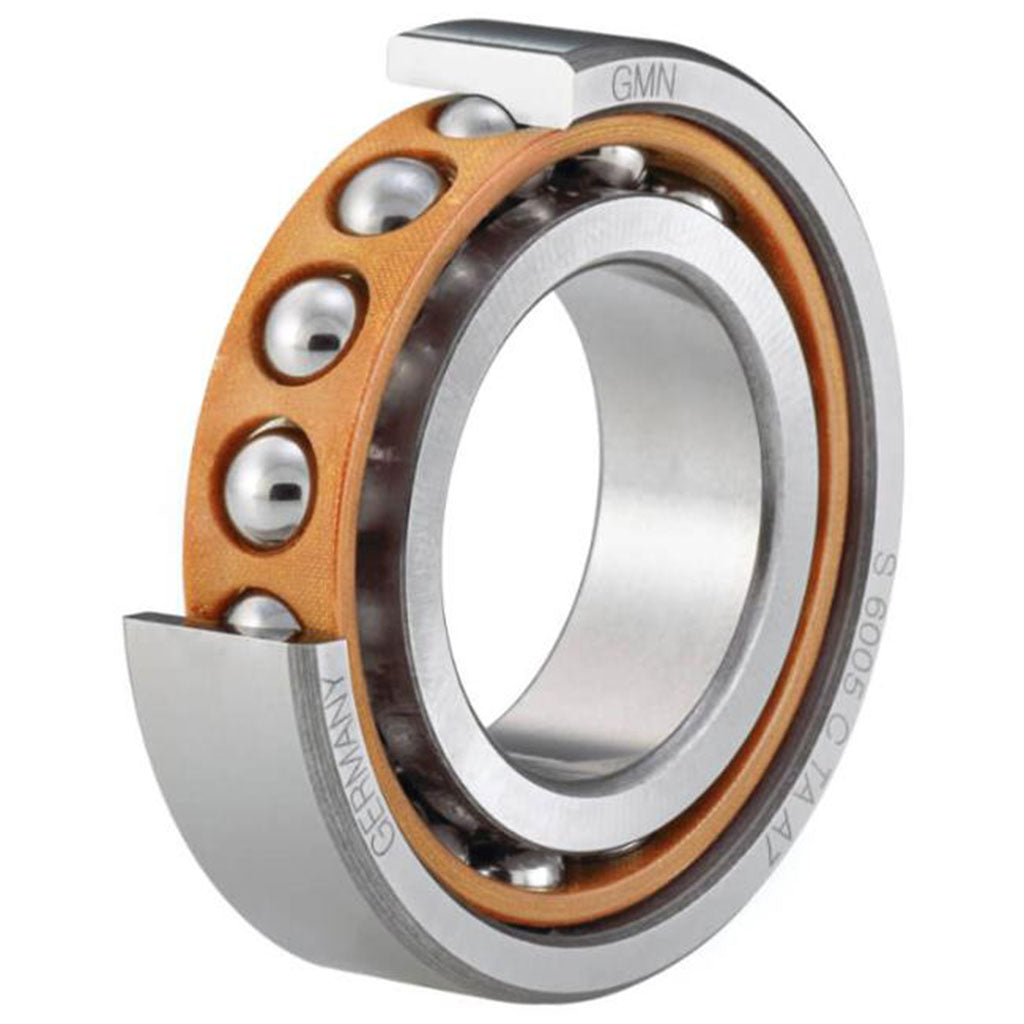

GMN Bearing KH Series

Angular Contact Ball Bearings

Fastest Speeds, Light Loads

The KH series is optimized to support the fastest speeds. Choose this bearing if you need seals (also comes open).

The KH series fits shafts with a max ID of 70 mm and supports max RPM speeds of 135,000 (steel) / 168,750 (ceramic).

*Delivery time for this item is 1-4 weeks

Product Selection Options
Ball Material 52100 Bearing Steel or Ceramic (silicon Nitride, Si3N4)
Lubrication Grease or Oil
Contact Angle 17° (C) or 25° (E)
Cage Material Phenolic Resin (standard) or PEEK with Carbon Fiber reinforcement
Preload Light, Medium, Heavy (or custom)
Bearing Set Single, Double, Triple, or Quad Sets, with Universal Matching

Part Number Key
C 17° Contact Angle
E 25° Contact Angle
TA Phenolic Resin (standard) Cage
HY Hybrid: Ceramic (Silicon Nitride, Si3N4) balls with bearing tool steel races

Part Number Bore Diameter d[mm] Outer Diameter D[mm] Width B[mm]
HY KH 6000 C TA 10 26 8
HY KH 6000 E TA 10 26 8
HY KH 6001 C TA 12 28 8
HY KH 6001 E TA 12 28 8
HY KH 6002 C TA 15 32 9
HY KH 6002 E TA 15 32 9
HY KH 6003 C TA 17 35 10
HY KH 6003 E TA 17 35 10
HY KH 6004 C TA 20 42 12
HY KH 6004 E TA 20 42 12

View full selection of bearings (pdf)

View Angular Contact Bearing Selection Guide (pdf)

Contact Us for a price quote (see contact form above ↑)
